LP3910SQX-AP/NOPB - Texas Instruments

Description: Power Management Specialised - PMIC Pwr Mgmt IC

Download LP3910SQX-AP/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

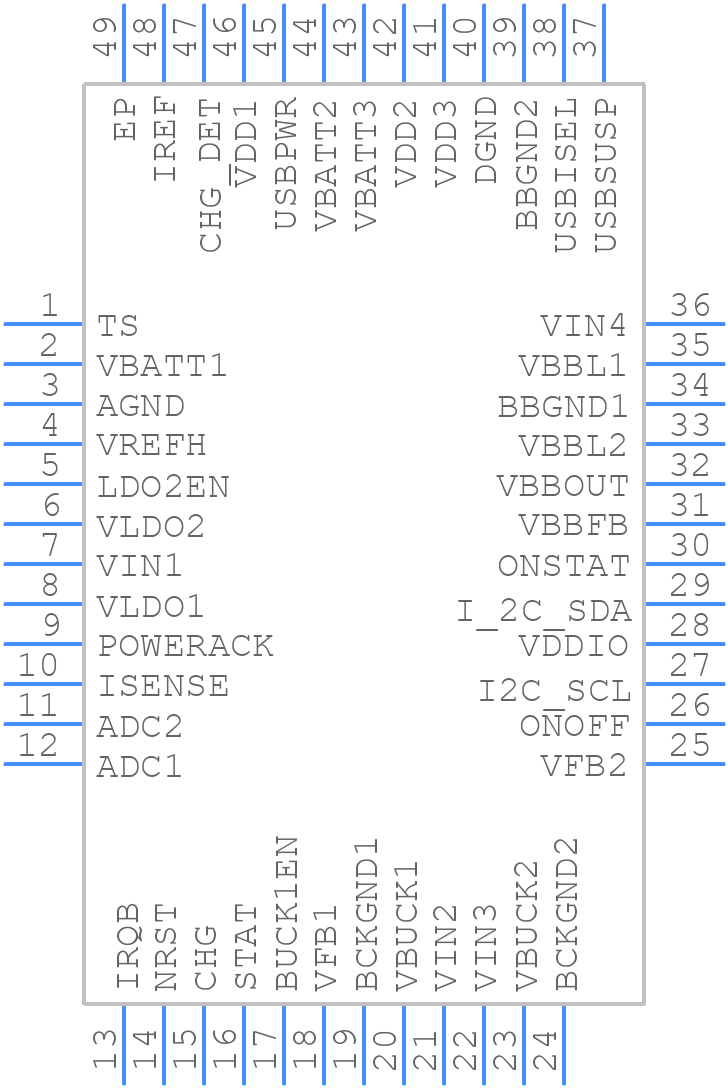

LP3910SQX-AP/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP3910SQX-AP/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DS90C185SQE/NOPB
click to zoom
3D Models
LP3910SQX-AP/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - DS90C185SQE/NOPB
click to zoom

LP3910SQX-AP/NOPB Details

  • Manufacturer Part Number:

    LP3910SQX-AP/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.9V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LP3910SQX-AP/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable start-up, Texas Instruments recommends a soft-start circuit to limit the inrush current and a bulk capacitor of at least 10uF to filter the input voltage. Additionally, a minimum input voltage of 2.5V is recommended for reliable start-up.
  • The LP3910SQX-AP/NOPB can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's recommended to consult the datasheet and application notes for specific guidance on output current capability.
  • The output voltage of the LP3910SQX-AP/NOPB can be adjusted by using a resistive divider network between the output and the feedback pin. The recommended resistive divider ratio is 1:1 to 1:10, and the output voltage can be calculated using the formula: Vout = 0.8V x (1 + R1/R2).
  • The LP3910SQX-AP/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 125°C. Thermal considerations such as thermal resistance, power dissipation, and heat sinking should be taken into account during design and layout.
