Part Image

LP3944ISQ/NOPB - Texas Instruments

Description: RGB/White/Blue 8-LED Fun Light Driver

Download ECAD Model

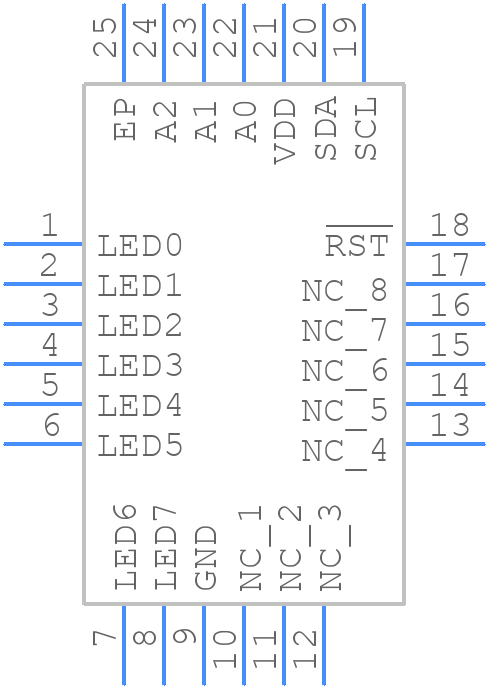

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

LP3944ISQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A WQFN
click to zoom

3D Models

LP3944ISQ/NOPB - Texas Instruments  - 3D model - Quad Flat No-Lead - RTW0024A WQFN
click to zoom

LP3944ISQ/NOPB Details

  • Manufacturer Part Number:

    LP3944ISQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN, LCC24,.16SQ,20

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.81

  • Samacsys Modified On:

    2020-07-31 06:25:51

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2.5/5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Subcategory:

    Display Drivers

  • Supply Current-Max:

    0.55 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    0.4 MHz

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

LP3944ISQ/NOPB Overview

Use the download button to access the LP3944ISQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP394, or try a keyword search, such as Display Drivers

Parts related to LP3944ISQ/NOPB

Showing 0 results

LP3944ISQ/NOPB Alternates

Showing results

Image Part Number Model
Part Image LP3944ISQ National Semiconductor Corporation

IC LED DISPLAY DRIVER, QCC24, Display Driver

Part Image LP3944ISQX National Semiconductor Corporation

IC LED DISPLAY DRIVER, QCC24, Display Driver

Part Image LP3944ISQ Texas Instruments

LED DISPLAY DRIVER, QCC24

Part Image LP3944ISQX Texas Instruments

LED DISPLAY DRIVER, QCC24
