Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal pad on the top layer connected to the exposed pad of the LP3954TLX/NOPB. This layout helps to dissipate heat efficiently and reduce thermal resistance.
To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1 ohm or less, and to place the output capacitor as close to the output pin as possible. Additionally, a 1uF input capacitor is recommended to filter out input noise.
Although the datasheet specifies a maximum input voltage of 15V, the LP3954TLX/NOPB can handle input voltages up to 18V for short durations (e.g. during startup or fault conditions). However, it is recommended to limit the input voltage to 15V or less for continuous operation to ensure reliability and prevent damage to the device.
The LP3954TLX/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, a heat sink or thermal management system may be necessary to keep the device within its operating temperature range.
To troubleshoot issues with the LP3954TLX/NOPB, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Verify that the PCB layout and component selection meet the recommended guidelines. Use a thermal camera or thermometer to check for overheating, and an oscilloscope to check for output voltage ripple or noise. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP3954TLX/NOPB Overview

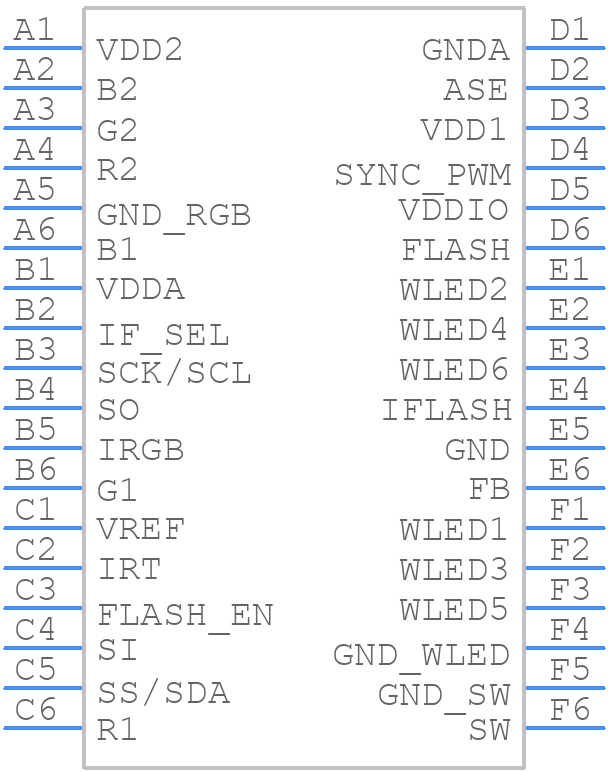

Use the download button to access the LP3954TLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP395,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
