LP5813AYBHR - Texas Instruments

Description: LED Lighting Driver ICs Synchronous boost 4 x 3 matrix RGB LED d

Download LP5813AYBHR Model

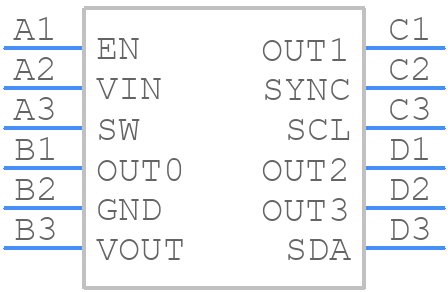

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LP5813AYBHR - Texas Instruments PCB footprint - BGA - BGA - YBH0012-C01_2025
click to zoom
3D Models
LP5813AYBHR - Texas Instruments  - 3D model - BGA - YBH0012-C01_2025
click to zoom

LP5813AYBHR Details

  • Manufacturer Part Number:

    LP5813AYBHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Display Mode:

    DOT MATRIX

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-XBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.82 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    BGA12(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    0.5 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Width:

    1.38 mm

  • fmax-Min:

    0.1 MHz

LP5813AYBHR Frequently Asked Questions (FAQs)

  • The maximum input voltage is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VIN and GND pins.
  • The minimum input voltage is 2.7V, but it's recommended to keep it above 3V for optimal performance and to ensure the output voltage remains within the specified range.
  • The LP5813AYBHR is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating and reduce the risk of failure.
  • The output voltage can be calculated using the formula: VOUT = (R1 / R2) * (VIN - VREF), where R1 and R2 are the resistors connected to the FB pin, VIN is the input voltage, and VREF is the internal reference voltage (1.22V).
