LP5862RSMR - Texas Instruments

Description: LED Lighting Drivers 2 18 LED matrix driver with 8-bit analog and 8-/16-bit PWM dimming

Download LP5862RSMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

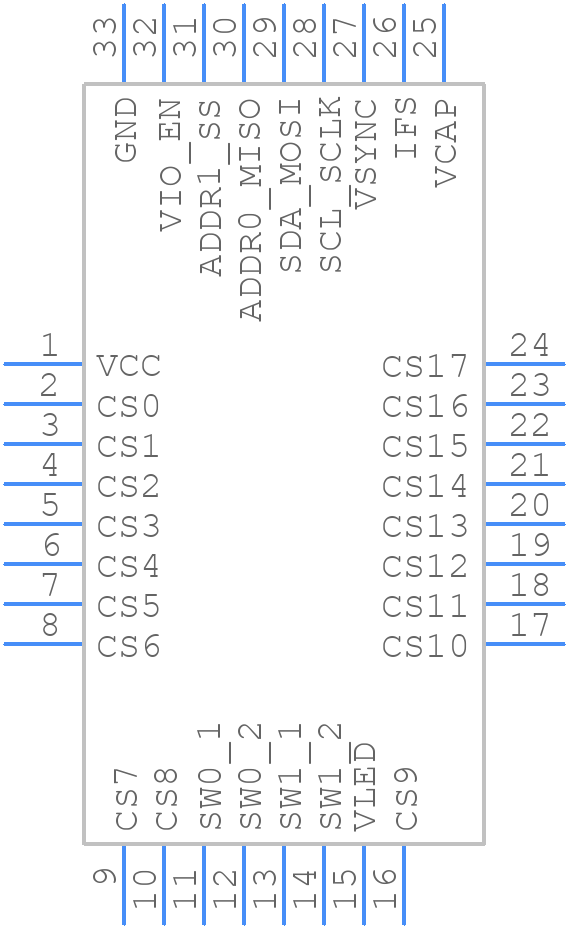

LP5862RSMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP5862RSMR - Texas Instruments PCB footprint - Other - Other - RSM0032B_2022
click to zoom
3D Models
LP5862RSMR - Texas Instruments - 3D model - Other - RSM0032B_2022
click to zoom

LP5862RSMR Details

  • Manufacturer Part Number:

    LP5862RSMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Display Mode:

    DOT MATRIX

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Channels:

    18

  • Number of Functions:

    1

  • Number of Segments:

    36

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.7 V

  • Supply Voltage1-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    12 MHz

LP5862RSMR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to place thermal vias under the device to dissipate heat efficiently.
  • To ensure stable and accurate output voltage, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
  • Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V to ensure reliable operation and to prevent damage to the device.
  • The LP5862RSMR is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the PCB is designed to dissipate heat efficiently.
  • To troubleshoot issues with the LP5862RSMR, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use a thermal camera or thermometer to monitor the device's temperature, and check for any signs of overheating or thermal stress.
