For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to place thermal vias under the device to dissipate heat efficiently. Additionally, keeping the device away from other heat sources and using a thermal pad or heat sink can improve thermal performance.
To ensure reliable operation across the entire operating temperature range, it is essential to follow proper PCB design guidelines, use a suitable thermal management strategy, and ensure that the device is operated within its specified voltage and current limits. Additionally, consider using a temperature sensor to monitor the device temperature and take corrective action if necessary.
To mitigate EMI and RFI when using the LP592201DSCT, it is essential to follow proper PCB layout guidelines, use shielding, and implement filtering and decoupling techniques. Additionally, consider using a common-mode choke and ferrite beads to reduce EMI emissions.
To troubleshoot issues related to output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is operated within its specified voltage and current limits. Use an oscilloscope to check for any voltage ripple or noise, and verify that the output capacitor values are correct.
Using a different capacitor type or value for the output capacitor can affect the stability and performance of the LP592201DSCT. It is essential to use a capacitor that meets the recommended specifications, as specified in the datasheet. Using a capacitor with a different ESR or capacitance value can affect the output voltage regulation and stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP592201DSCT Overview

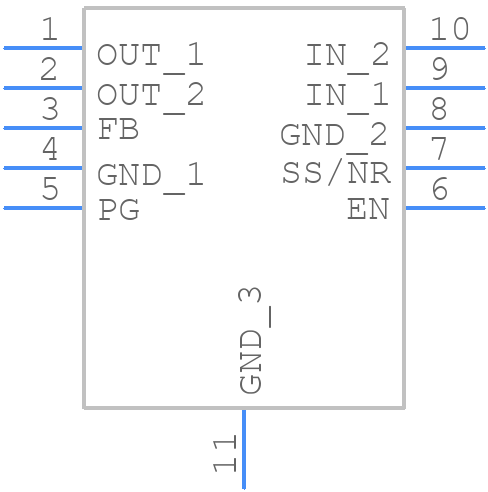

Use the download button to access the LP592201DSCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP592,
