Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to have a minimum of 2 vias under the device to connect the thermal pad to the ground plane.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using a thermal interface material (TIM) between the device and the heat sink, and ensuring good airflow around the device.
The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures stable operation and minimizes the risk of oscillation.
To configure the device for optimal efficiency, it's essential to understand the application's specific requirements, such as output voltage, current, and switching frequency. Texas Instruments provides a range of tools and resources, including the WEBENCH Power Designer, to help engineers optimize their design for maximum efficiency.
To ensure EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, including using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, the device's switching frequency and output voltage should be carefully selected to minimize EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8557IAYFQR Overview

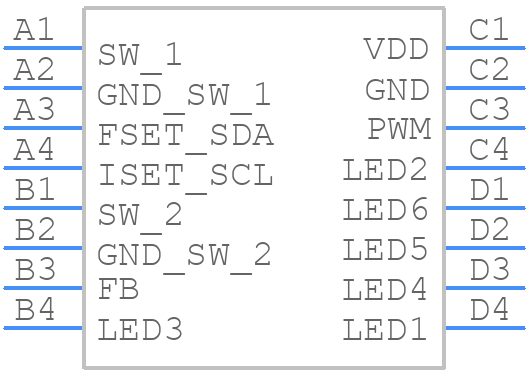

Use the download button to access the LP8557IAYFQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
