Texas Instruments provides a recommended PCB layout in the LP87322 datasheet, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
The LP87322ERHDTQ1 is a programmable power management IC, and the output voltage can be configured using the I2C interface. The device has a set of registers that control the output voltage, and the specific configuration depends on the desired output voltage and application requirements.
The LP87322ERHDTQ1 has an absolute maximum input voltage rating of 6.5V, but the recommended operating input voltage range is 3.5V to 5.5V. Exceeding the absolute maximum rating can damage the device.
To ensure EMC compliance, follow proper PCB layout and design guidelines, use adequate filtering and shielding, and ensure that the device is operated within its specified frequency range. Additionally, Texas Instruments provides EMC-related application notes and guidelines for the LP87322ERHDTQ1.
The LP87322ERHDTQ1 has a controlled power sequencing behavior during power-up and power-down, which is configurable through the I2C interface. The device can be configured to power up and power down in a specific sequence to ensure proper system operation and minimize power-on reset (POR) issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP87322ERHDTQ1 Overview

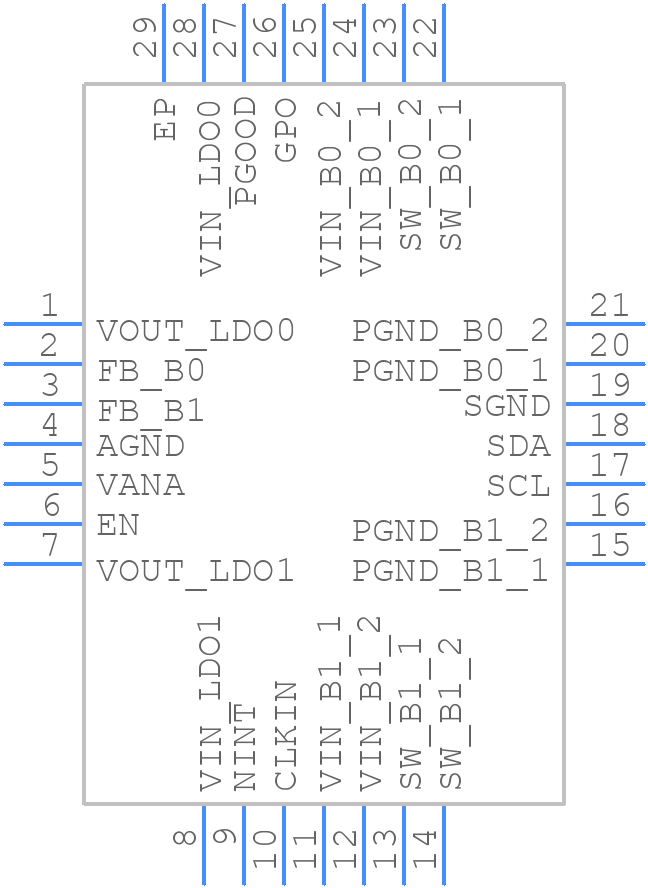

Use the download button to access the LP87322ERHDTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP873,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
