LP873300RHDRQ1 - Texas Instruments

Description: Dual High-Current Buck Converters and Dual Linear Regulators

Download LP873300RHDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

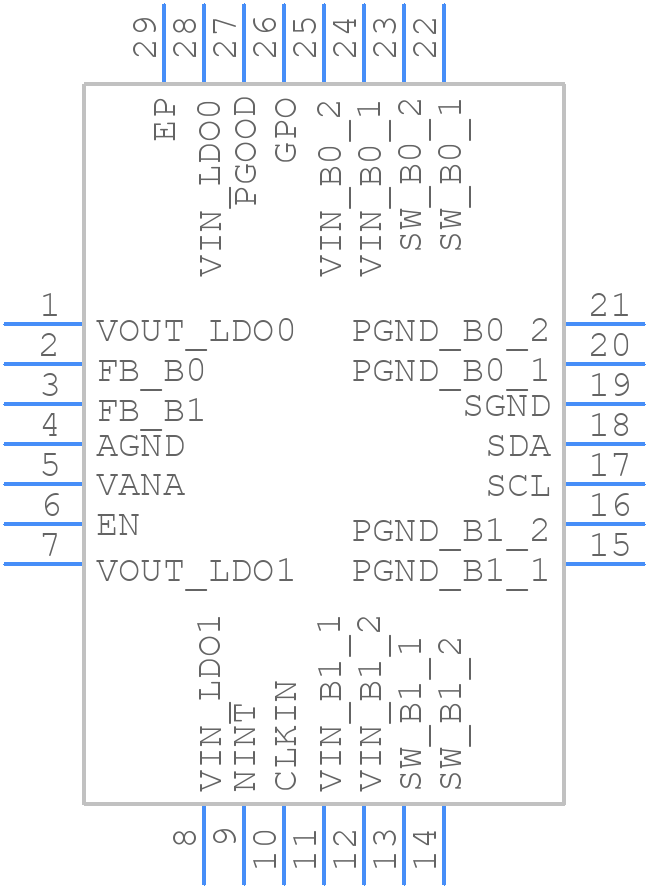

Symbol
LP873300RHDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP873300RHDRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028W
click to zoom
3D Models
LP873300RHDRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028W
click to zoom

LP873300RHDRQ1 Details

  • Manufacturer Part Number:

    LP873300RHDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-10-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LP873300RHDRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LP873300RHDRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The LP873300RHDRQ1 has a programmable output voltage, which can be set using the I2C interface. The device has a default output voltage of 3.3V, but it can be changed by writing to the VOUT register. The datasheet provides a table with the corresponding voltage values for each register setting.
  • The LP873300RHDRQ1 has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device.
  • The LP873300RHDRQ1 has a built-in overcurrent protection feature that can be enabled by setting the OCP register. The device will limit the output current to a predetermined value (typically 2A) to prevent damage from excessive current. The datasheet provides more information on how to configure the OCP feature.
  • The LP873300RHDRQ1 has a thermal shutdown temperature of 150°C. If the device junction temperature exceeds this value, it will shut down to prevent damage. The device will automatically restart when the temperature drops below 140°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP873300RHDRQ1 Overview

Use the download button to access the LP873300RHDRQ1 schematic symbol, PCB footprint, and 3D model.
