LP873300RHDTQ1 - Texas Instruments

Description: Power Management Specialised - PMIC

Download LP873300RHDTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

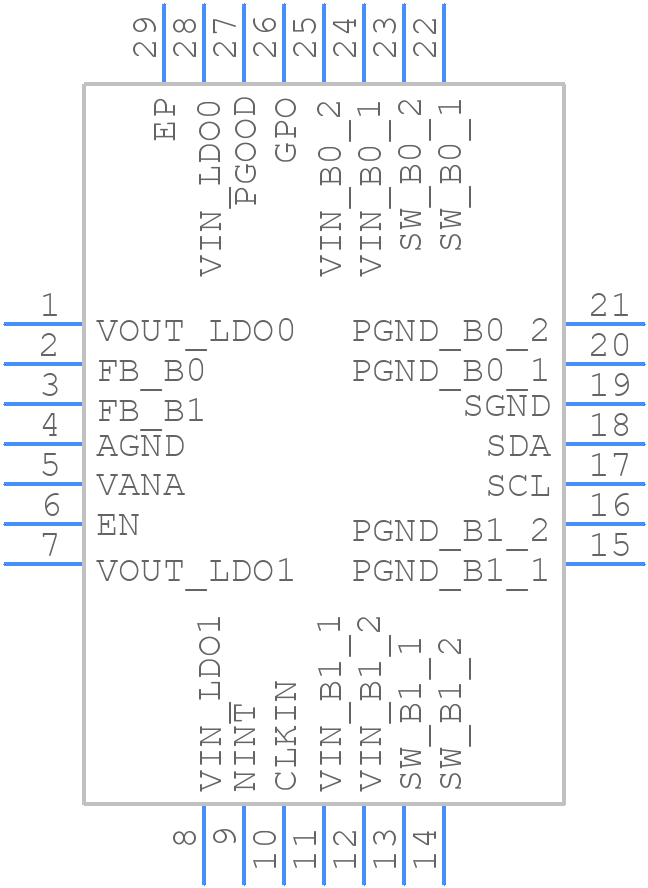

Symbol
LP873300RHDTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP873300RHDTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028W
click to zoom
3D Models
LP873300RHDTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028W
click to zoom

LP873300RHDTQ1 Details

  • Manufacturer Part Number:

    LP873300RHDTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LP873300RHDTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to have a minimum of 2 vias under the device to connect the thermal pad to the ground plane.
  • The LP873300RHDTQ1 has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. It's recommended to follow the power-up sequencing guidelines in the datasheet and to use an external capacitor on the VDD pin to filter out noise and ensure a clean power-up.
  • The maximum output current capability of each LDO regulator is 300mA. However, it's recommended to derate the output current based on the ambient temperature and the device's thermal performance to ensure reliable operation.
  • The LP873300RHDTQ1 has a low-power mode that can be enabled by setting the EN_LPM pin high. In low-power mode, the device's quiescent current is reduced, and the output voltage of the LDO regulators is reduced to minimize power consumption.
  • The recommended input capacitor value for the LP873300RHDTQ1 is 10uF to 22uF, with a voltage rating of 6.3V or higher. The input capacitor helps to filter out noise and ensure a stable input voltage.
