LP87524BRNFRQ1 - Texas Instruments

Description: 4-A + 2.5-A + Two 1.5-A Buck Converters with Integrated Switches for nanoRadar

Download LP87524BRNFRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

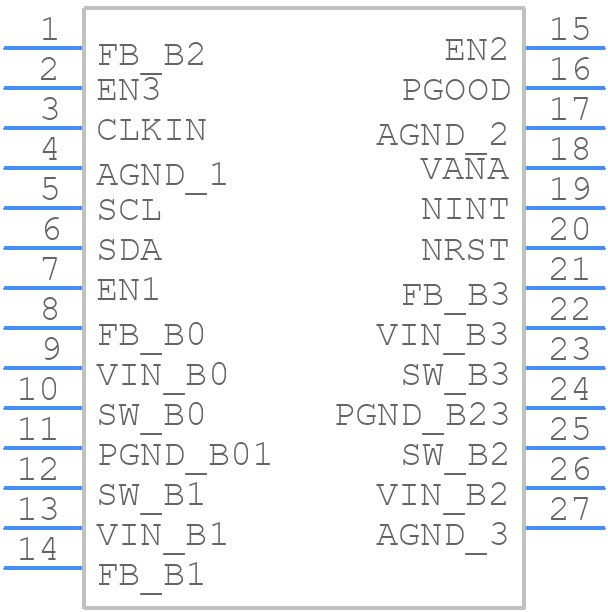

Symbol
LP87524BRNFRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP87524BRNFRQ1 - Texas Instruments PCB footprint - Other - Other - LP87524BRNFRQ1
click to zoom

LP87524BRNFRQ1 Details

  • Manufacturer Part Number:

    LP87524BRNFRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH PFM MODE; ADJ OUTPUT VOLTAGE= 0.6V TO 3.36V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    R-PQCC-N26

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC26,.16X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LP87524BRNFRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LP87524BRNFRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's compensation pin (COMP) should be properly connected to the output capacitor.
  • The LP87524BRNFRQ1 can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent damage to the device.
  • The LP87524BRNFRQ1 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LP87524BRNFRQ1, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly connected and that the PCB layout is correct.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP87524BRNFRQ1 Overview

Use the download button to access the LP87524BRNFRQ1 schematic symbol and PCB footprint.
