Texas Instruments provides a recommended PCB layout in the LP8860 evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit inrush current and prevent voltage overshoots.
Operating the LP8860LQVFPRQ1 beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within the specified temperature, voltage, and current ranges to guarantee optimal performance and longevity.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors for correctness and ensure that the device is properly configured and compensated. Also, verify that the output voltage is within the specified range and that the device is not operating in a fault condition.
To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use shielding and filtering components as necessary, and ensure that the device is properly decoupled and bypassed. Additionally, consider using spread-spectrum clocking and slew-rate control to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8860LQVFPRQ1 Overview

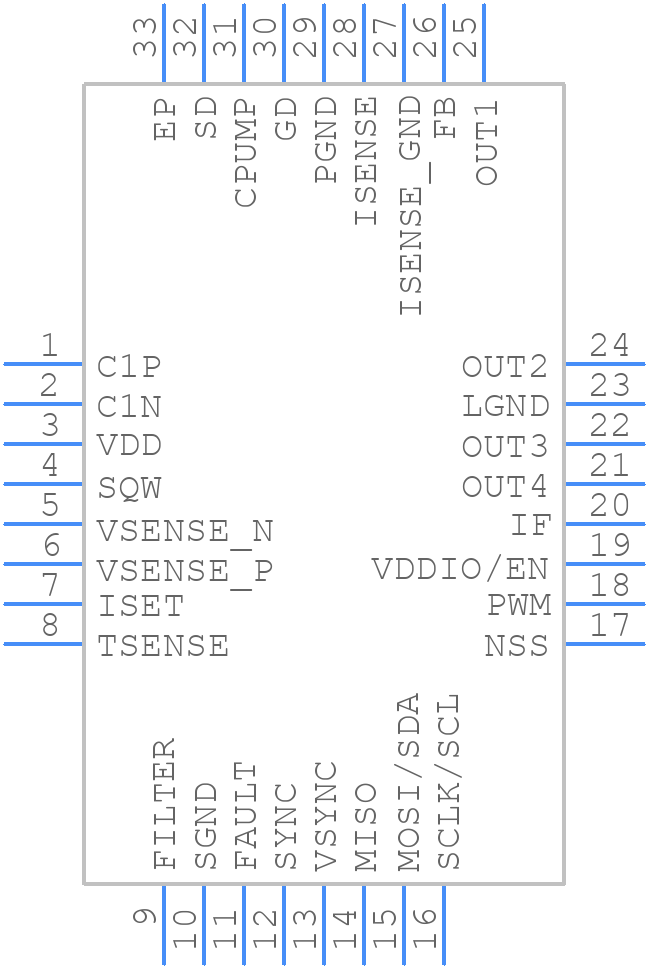

Use the download button to access the LP8860LQVFPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP886,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
