SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
5.5 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
3.3 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
fmax-Min:
2.2 MHz
LP8864QDCPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the LP8864QDCPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce EMI and noise. TI provides a recommended PCB layout in the datasheet and application notes.
The choice of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
The LP8864QDCPRQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. TI recommends derating the device's power dissipation at high temperatures to ensure reliable operation.
To ensure stability, follow the recommended PCB layout, use a sufficient output capacitor, and ensure the device is properly decoupled. TI also recommends adding a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
The LP8864QDCPRQ1 is capable of delivering up to 2A of output current, but the maximum output current depends on the input voltage, output voltage, and ambient temperature. TI recommends checking the device's thermal performance and power dissipation to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8864QDCPRQ1 Overview

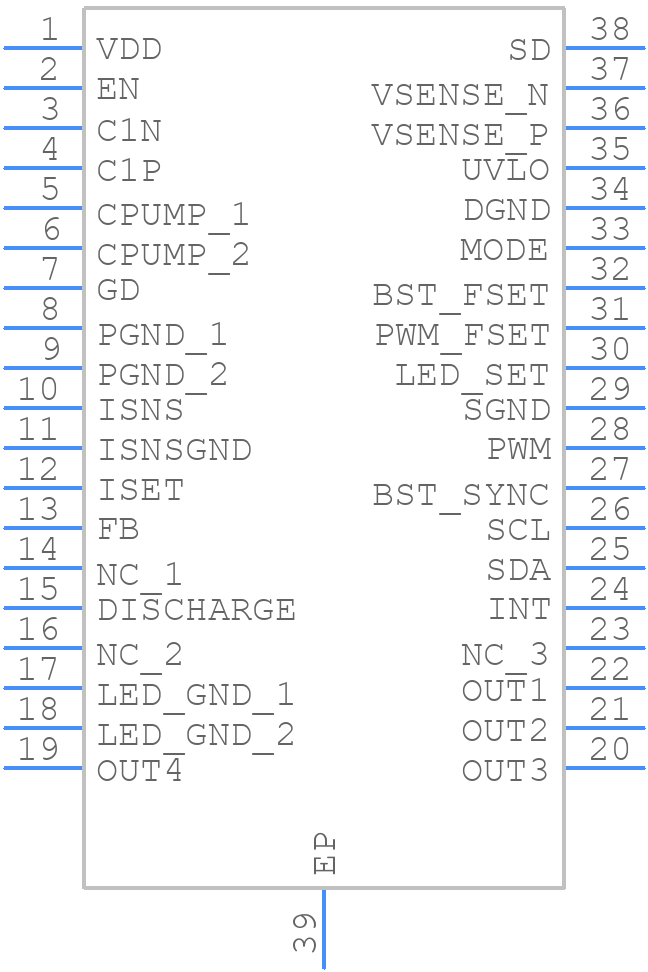

Use the download button to access the LP8864QDCPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP886,
or try a keyword search, such as Display Drivers
