A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is within the recommended range.
Operating the device outside the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even damage to the device. It's essential to ensure that the device operates within the specified temperature range, input voltage range, and output current range to guarantee optimal performance and reliability.
To troubleshoot issues with the device, start by reviewing the datasheet and application notes to ensure that the device is being used within the recommended operating conditions. Check the input voltage, output current, and thermal performance to identify potential issues. Use oscilloscopes and thermal imaging tools to help diagnose the problem.
Yes, the LP8869QPWPRQ1 is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, ensure that the device is placed in a shielded area, and that the PCB layout is designed to minimize radiation. Additionally, follow good EMI/EMC design practices, such as using bypass capacitors and shielding.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8869QPWPRQ1 Overview

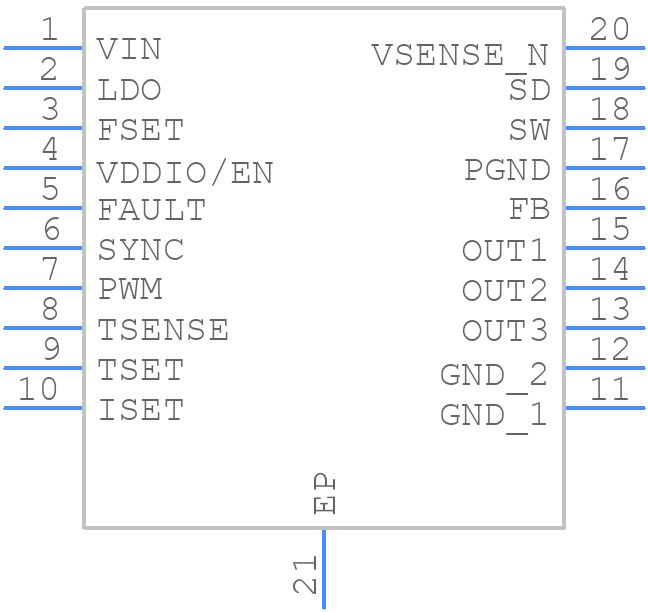

Use the download button to access the LP8869QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP886,
or try a keyword search, such as Display Drivers
