Texas Instruments recommends a compact layout with the device placed close to the power supply and load, with short traces to minimize inductance and resistance. A 4-layer PCB with a solid ground plane is recommended. Additionally, it's essential to follow the datasheet's guidelines for pin placement and routing to ensure optimal performance.
To optimize the LPV542DNXT for low noise and high PSRR, use a low-ESR output capacitor, such as a ceramic or film capacitor, and place it close to the device. Additionally, use a high-quality input capacitor with low ESR and ESL. Ensure that the PCB layout is compact and well-shielded, and use a solid ground plane to reduce noise coupling. Finally, consider adding a noise-reducing component, such as a ferrite bead, in series with the input voltage.
The maximum input voltage that can be applied to the LPV542DNXT is 15V, although the recommended operating range is 2.7V to 12V. Exceeding the maximum input voltage can cause damage to the device or affect its performance.
To ensure stability and prevent oscillations in the LPV542DNXT, follow the datasheet's guidelines for output capacitor selection and placement. Use a capacitor with a low ESR and a sufficient capacitance value. Additionally, ensure that the PCB layout is compact and well-shielded, and use a solid ground plane to reduce noise coupling. Finally, consider adding a compensation capacitor between the output and the feedback pin to improve stability.
The LPV542DNXT has a thermal derating of 20mA/°C above 25°C. This means that the device's output current capability decreases as the temperature increases. To ensure reliable operation, it's essential to consider the thermal derating when designing the system and to provide adequate heat sinking and cooling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPV542DNXT Overview

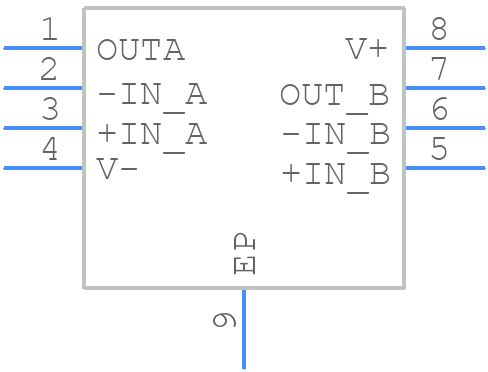

Use the download button to access the LPV542DNXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPV54,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
