LPX331M400E7P3 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 330uF 400V SNAP/MNT

Download LPX331M400E7P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LPX331M400E7P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

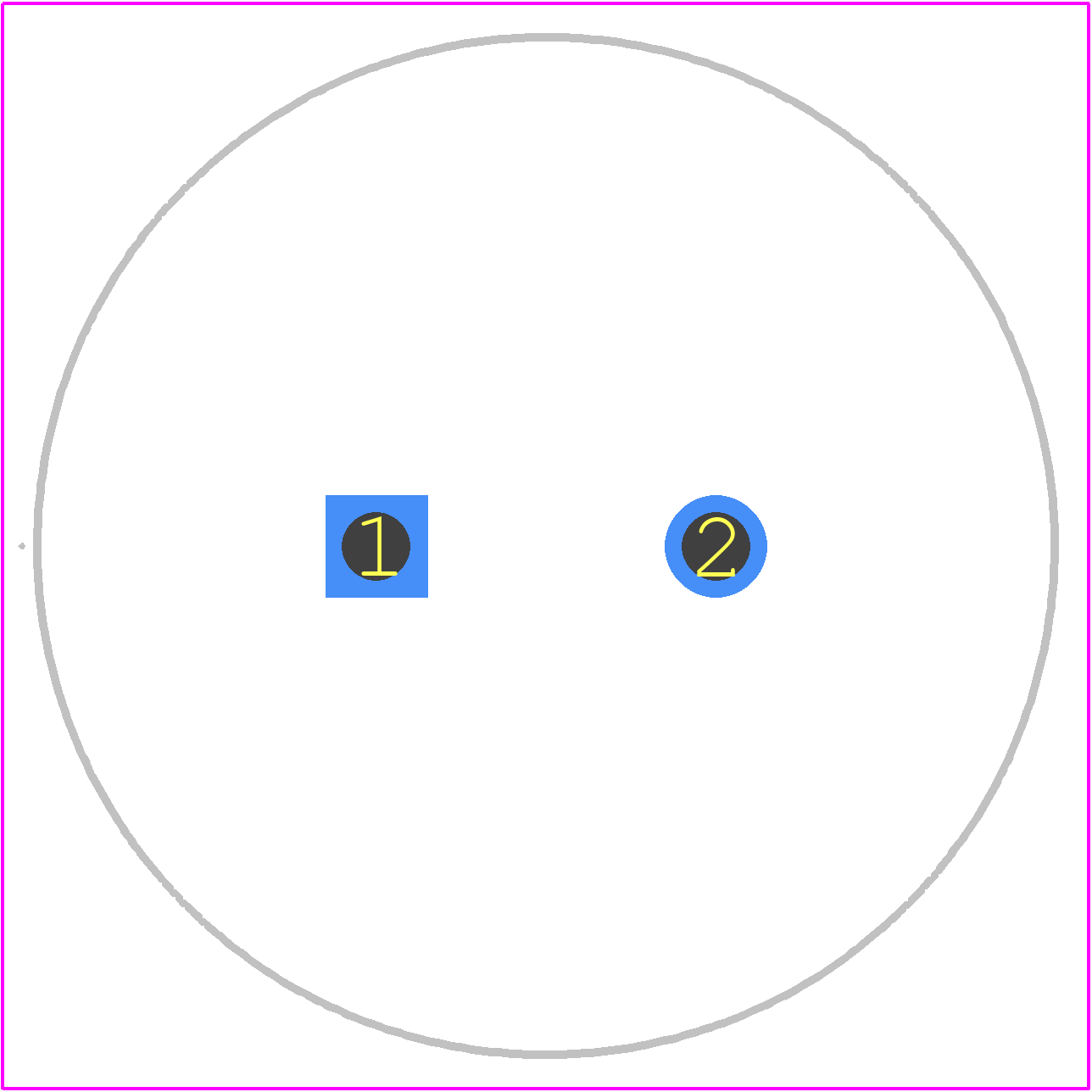

LPX331M400E7P3 - Cornell Dubilier PCB footprint - Other - Other - 30mm x 40mm
click to zoom
3D Models
LPX331M400E7P3 - Cornell Dubilier - 3D model - Other - 30mm x 40mm
click to zoom

LPX331M400E7P3 Details

  • Manufacturer Part Number:

    LPX331M400E7P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    3

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    603 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.09 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1600 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LPX331M400E7P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier Electronics Inc to ensure the capacitor's reliability and performance.
  • Yes, LPX331M400E7P3 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in applications with mechanical stress.
  • Yes, LPX331M400E7P3 is designed to operate at high altitudes. It meets the requirements of MIL-PRF-39006, which ensures its performance and reliability in low-pressure environments.
  • The ESR of LPX331M400E7P3 is not explicitly stated in the datasheet. However, according to Cornell Dubilier Electronics Inc, the typical ESR is around 10-15 mohms at 100 kHz and 20°C. This value may vary depending on the frequency and operating conditions.
  • Yes, LPX331M400E7P3 is designed to operate in humid environments. It meets the requirements of IEC 60068-2-30, which ensures its reliability and performance in humid conditions.
