LT1004CDR-2-5 - Texas Instruments

Description: Micropower Integrated Precision Voltage Reference

Download LT1004CDR-2-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

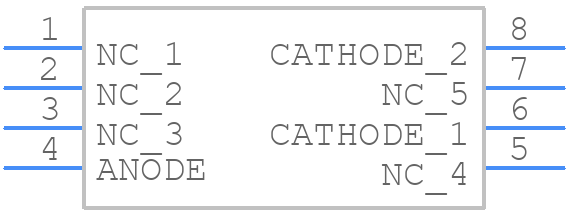

Symbol
LT1004CDR-2-5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LT1004CDR-2-5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LT1004CDR-2-5 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LT1004CDR-2-5 Details

  • Manufacturer Part Number:

    LT1004CDR-2-5

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.52 V

  • Output Voltage-Min:

    2.48 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.8%

  • Width:

    3.9 mm

LT1004CDR-2-5 Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the LT1004CDR-2-5 away from high-current carrying traces and noisy components. Use a solid ground plane and keep the input and output traces short and direct. Avoid routing digital signals near the voltage reference.
  • Use a 10nF to 100nF ceramic capacitor between the input pin and ground, and a 10uF to 22uF electrolytic capacitor between the output pin and ground. Place the capacitors as close to the device as possible.
  • The LT1004CDR-2-5 is rated for operation from -40°C to 125°C. However, the accuracy and stability of the voltage reference may degrade at extreme temperatures.
  • No, the LT1004CDR-2-5 is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, but it does not have the current drive capability to regulate voltage.
  • The output impedance of the LT1004CDR-2-5 is typically around 10 ohms. You can calculate it using the formula: Zout = (ΔVout / ΔIout) where ΔVout is the change in output voltage and ΔIout is the change in output current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1004CDR-2-5 Overview

Use the download button to access the LT1004CDR-2-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100, or try a keyword search, such as Voltage References

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
