LT1004IDR-1-2 - Texas Instruments

Description: Micropower Integrated Precision Voltage Reference

Download LT1004IDR-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

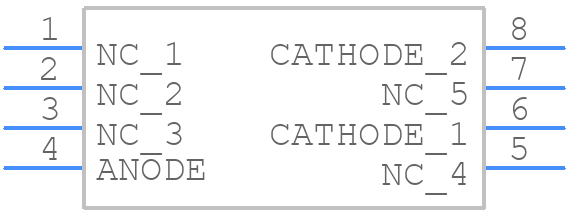

LT1004IDR-1-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LT1004IDR-1-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC
click to zoom
3D Models
LT1004IDR-1-2 - Texas Instruments - 3D model - Small Outline Packages - 8-SOIC
click to zoom

LT1004IDR-1-2 Details

  • Manufacturer Part Number:

    LT1004IDR-1-2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.239 V

  • Output Voltage-Min:

    1.231 V

  • Output Voltage-Nom:

    1.235 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.3%

  • Width:

    3.9 mm

LT1004IDR-1-2 Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the LT1004IDR-1-2 away from high-current carrying traces and noisy components. Use a solid ground plane and decouple the input and output pins with 0.1uF capacitors. Keep the output pin as short as possible and avoid routing it near noisy signals.
  • To ensure stability and accuracy over temperature, use a stable input voltage, keep the device within its recommended operating temperature range (-40°C to 125°C), and avoid thermal gradients on the PCB. Also, consider using a thermally conductive material under the device to dissipate heat.
  • The recommended input voltage range for the LT1004IDR-1-2 is 4.5V to 15V. Operating the device outside this range may affect its accuracy and stability.
  • No, the LT1004IDR-1-2 is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, not to regulate voltage. Using it as a voltage regulator may lead to instability and inaccurate output.
  • The LT1004IDR-1-2 can source up to 10mA of current. Ensure that the output current is within this limit to avoid overloading the device. Also, use a buffer amplifier if you need to drive a heavy load.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1004IDR-1-2 Overview

Use the download button to access the LT1004IDR-1-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100, or try a keyword search, such as Voltage References
