Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors.
To ensure stability, make sure to follow the recommended output capacitor values and ESR (Equivalent Series Resistance) ranges, and use a sufficient input capacitor to filter out noise. Additionally, avoid using capacitors with high ESL (Equivalent Series Inductance) values.
While the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V to ensure reliable operation and minimize the risk of damage due to voltage spikes or transients.
The LT1004IPWR-1-2 is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the junction temperature (Tj) does not exceed the maximum rating. This may require additional thermal management, such as heat sinks or thermal interfaces.
Power dissipation can be calculated using the formula Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Heat generation can be estimated using the thermal resistance (RθJA) and the power dissipation value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT1004IPWR-1-2 Overview

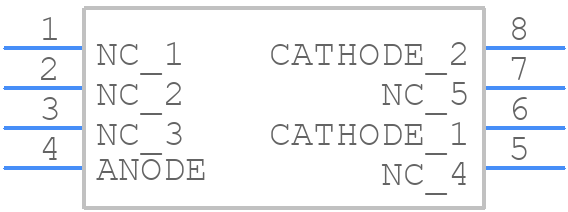

Use the download button to access the LT1004IPWR-1-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100,
or try a keyword search, such as Voltage References
