LT1009CDR - Texas Instruments

Description: 2.5-V INTEGRATED REFERENCE CIRCUIT

Download LT1009CDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

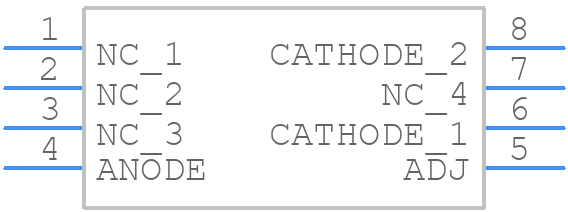

Symbol
LT1009CDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LT1009CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LT1009CDR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LT1009CDR Details

  • Manufacturer Part Number:

    LT1009CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    +/-5 PERCENT ADJUSTABLE REFERENCE VOLTAGE

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.515 V

  • Output Voltage-Min:

    2.485 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.2%

  • Width:

    3.9 mm

LT1009CDR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1009CDR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor's ESR (Equivalent Series Resistance) low. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) and ensure the device is properly decoupled from the power supply.
  • The LT1009CDR can handle input voltages up to 15V, but it's recommended to keep the input voltage below 12V for optimal performance and to prevent overheating.
  • The LT1009CDR is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage of the LT1009CDR can be calculated using the formula: Vout = (1 + R2/R1) * Vin, where R1 and R2 are the feedback resistors, and Vin is the input voltage.
