LT1009S8#TRPBF - Analog Devices

Description: Voltage References Volt Reference 2.5V

Download LT1009S8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

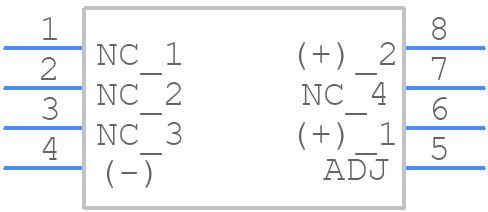

Symbol
LT1009S8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1009S8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-ren1
click to zoom
3D Models
LT1009S8#TRPBF - Analog Devices - 3D model - Small Outline Packages - SO-8-ren1
click to zoom

LT1009S8#TRPBF Details

  • Manufacturer Part Number:

    LT1009S8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLATSIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    REFERENCE VOLTAGE CAN BE ADJUSTED TO +/-5%

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.9 mm

LT1009S8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1009S8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range (10uF to 100uF), the input capacitor is at least 1uF, and the ESR of the output capacitor is within the recommended range (0.05Ω to 5Ω). Also, avoid using capacitors with high ESL.
  • The maximum ambient temperature range for the LT1009S8 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may drop.
  • Yes, the LT1009S8 is suitable for high-reliability applications. It is manufactured using a proprietary BiCMOS process, which ensures high reliability and low failure rates. Additionally, the device is qualified to automotive and industrial standards.
  • The power dissipation of the LT1009S8 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1009S8#TRPBF Overview

Use the download button to access the LT1009S8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
