LT1019CN8-2.5#PBF - Analog Devices

Description: LT1019CN8-2.5#PBF, Precision Voltage Reference 2.5V 0.2% 10mA 40 V max. 8-Pin PDIP N

Download LT1019CN8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

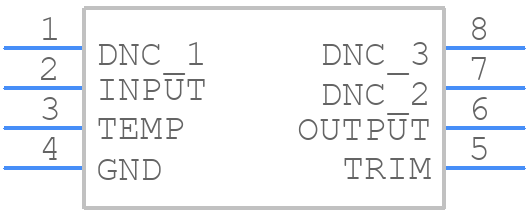

LT1019CN8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

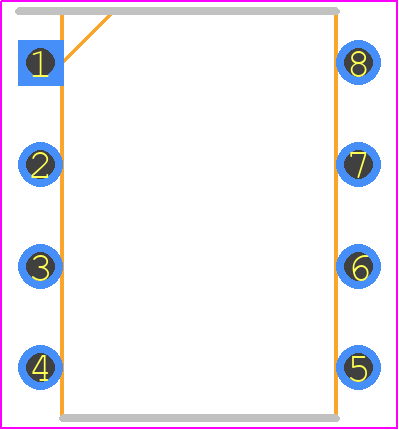

LT1019CN8-2.5#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP (N8)
click to zoom
3D Models
LT1019CN8-2.5#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead PDIP (N8)
click to zoom

LT1019CN8-2.5#PBF Details

  • Manufacturer Part Number:

    LT1019CN8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.65 V

  • Output Voltage-Min:

    2.35 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Width:

    7.62 mm

LT1019CN8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1019CN8-2.5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use a sufficient output capacitor, and ensure that the input and output capacitors are properly sized. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The maximum power dissipation of the LT1019CN8-2.5 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
  • The LT1019CN8-2.5 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure that the device is operated within its recommended operating conditions and that proper thermal management is implemented.
  • To protect the LT1019CN8-2.5 from input voltage transients and surges, it's recommended to use a voltage transient suppressor or a TVS diode at the input. Additionally, a fuse or a current limiter can be used to protect the device from overcurrent conditions.
