LT1281ACN#PBF - Analog Devices

Description: LT1281ACN#PBF, Dual Line Transceiver, EIA-232, RS-232 2-TX 2-RX 2-TRX, 5 V, 16-Pin PDIP

Download LT1281ACN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

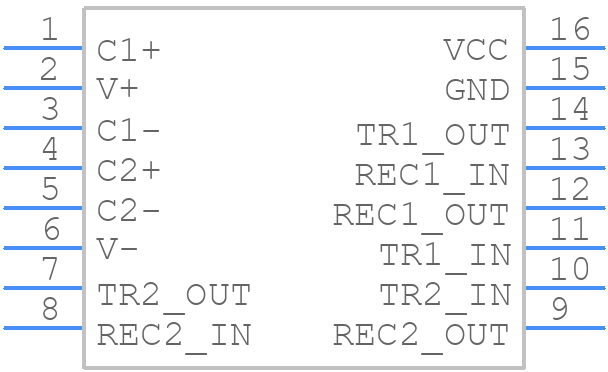

LT1281ACN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1281ACN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom
3D Models
LT1281ACN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom

LT1281ACN#PBF Details

  • Manufacturer Part Number:

    LT1281ACN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1510 (N16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    22.86 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    600 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1300 ns

  • Width:

    7.62 mm

LT1281ACN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1281ACN involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, avoid using long output traces and minimize the inductance in the output loop.
  • The LT1281ACN can operate in ambient temperatures up to 70°C. However, the device's junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the LT1281ACN can be used in switching regulator designs. However, it's essential to ensure that the device is properly bypassed and that the input and output capacitors are suitable for high-frequency switching applications.
  • To troubleshoot issues with the LT1281ACN, start by checking the input and output voltages, as well as the device's operating frequency. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1281ACN#PBF Overview

Use the download button to access the LT1281ACN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT128, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
