LT1460DCS8-10#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1460DCS8-10#PBF - Voltage Reference, Precision Micropower, Series - Fixed, LT1460 Series, 10V, NSOIC-8

Download LT1460DCS8-10#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

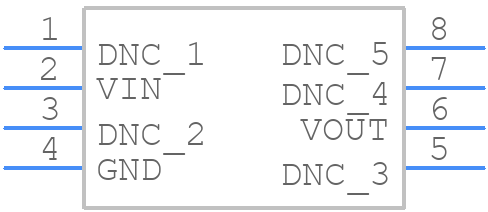

Symbol
LT1460DCS8-10#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1460DCS8-10#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT1460DCS8-10#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT1460DCS8-10#PBF Details

  • Manufacturer Part Number:

    LT1460DCS8-10#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    10.01 V

  • Output Voltage-Min:

    9.99 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    10.9 V

  • Supply Voltage-Nom (Vsup):

    12.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

LT1460DCS8-10#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1460 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output resistors within the recommended range. Also, avoid using long input traces and ensure that the device is properly decoupled.
  • The maximum power dissipation of the LT1460 is dependent on the package type and the ambient temperature. For the DCS8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the device's thermal resistance.
  • The LT1460 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe junction temperature.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of noise or coupling, ensure that the input and output capacitors are properly sized and placed, and verify that the compensation network is correctly implemented. Also, check for any signs of overheating or excessive power dissipation.
