LT3598EUF#PBF - Analog Devices

Description: Linear Technology LT3598EUF#PBF, LCD Display Driver 60-Segments, 3.2 → 30 V, 24-Pin QFN

Download LT3598EUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

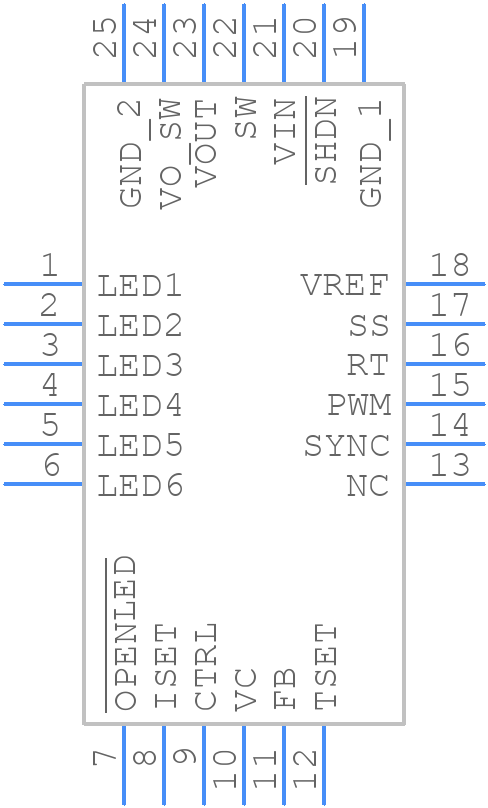

Symbol
LT3598EUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3598EUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm)_1
click to zoom
3D Models
LT3598EUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm)_1
click to zoom

LT3598EUF#PBF Details

  • Manufacturer Part Number:

    LT3598EUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, LEAD FREE, PLASTIC, MO-220WGGD-X, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    60

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    3.2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LT3598EUF#PBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC can help to dissipate heat efficiently. Keep the input and output capacitors close to the IC and use short, wide traces to minimize inductance.
  • Ensure that the output capacitor has a low ESR, and the input capacitor has a high ripple current rating. Also, add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The LT3598EUF#PBF is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the output current and ensure good airflow to maintain a junction temperature below 125°C.
  • While it's possible to use a different inductor, it's not recommended. The datasheet's recommended inductor values are optimized for the converter's performance and stability. Using a different inductor may affect the converter's efficiency, stability, or even prevent it from working properly.
  • Use an oscilloscope to check the input and output voltage waveforms, as well as the inductor current. Verify that the input voltage is within the recommended range, and check for any signs of overheating or component damage.
