LT3669EUFD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3669EUFD#PBF - Specialized Interface, Industrial Sensors and Actuators, 7.5 V, 40 V, QFN, 28 Pins

Download LT3669EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

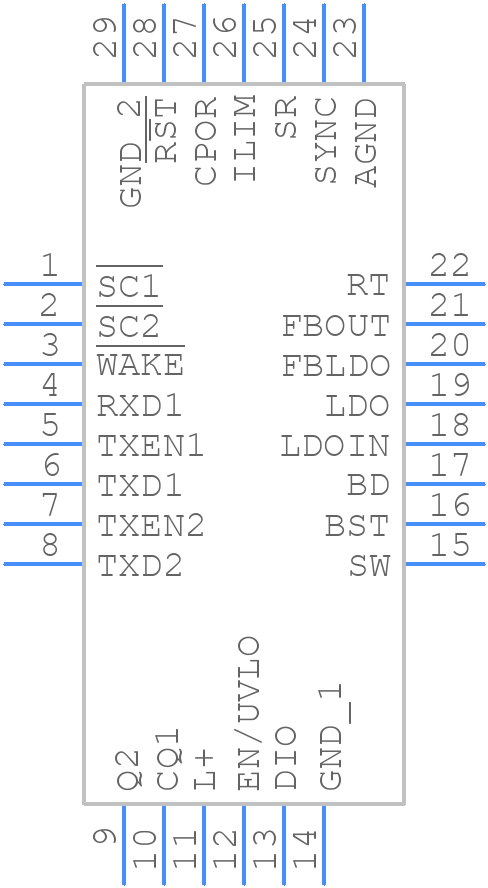

LT3669EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3669EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD (28-Lead QFN)
click to zoom
3D Models
LT3669EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD (28-Lead QFN)
click to zoom

LT3669EUFD#PBF Details

  • Manufacturer Part Number:

    LT3669EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    230 Mbps

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    IO-LINK TRANSCIEVERS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT3669EUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3669EUFD is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor.
  • The LT3669EUFD is rated for operation up to 125°C, but it's essential to consider the thermal derating and ensure that the device is properly heatsinked to maintain a safe junction temperature.
  • The output voltage of the LT3669EUFD can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network.
  • The minimum input voltage required for the LT3669EUFD to operate is 3.5V, but it's recommended to keep it above 4V for optimal performance.
