LT4254CGN#PBF - Analog Devices

Description: Hot Swap Controller 1 Channel General Purpose 16-SSOP

Download LT4254CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

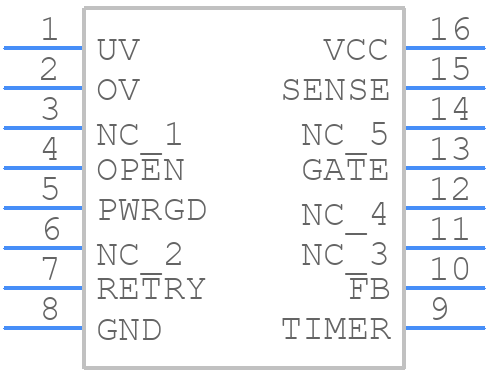

LT4254CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4254CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package
click to zoom
3D Models
LT4254CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package
click to zoom

LT4254CGN#PBF Details

  • Manufacturer Part Number:

    LT4254CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT4254CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4254CGN involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize errors.
  • To ensure accurate current sensing, it's essential to use a low-impedance sense resistor, keep the sense traces short and symmetrical, and minimize the distance between the sense pins and the sense resistor. Additionally, the sense pins should be connected to a low-impedance node to reduce errors.
  • The LT4254CGN has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and accuracy.
  • The LT4254CGN has a maximum input voltage rating of 80V, but it's not recommended to use it in high-voltage applications without proper protection and isolation. Additional circuitry, such as voltage dividers or isolation amplifiers, may be required to ensure safe and accurate operation.
  • Common issues with the LT4254CGN can be troubleshooted by checking the PCB layout, ensuring proper connections and component values, and verifying the input and output voltage ranges. Additionally, checking for noise and interference, and ensuring proper decoupling and filtering can help resolve issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4254CGN#PBF Overview

Use the download button to access the LT4254CGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT425, or try a keyword search, such as Power Management Circuits
