LT4275BHDD#PBF - Analog Devices

Description: LTPoE++/PoE+/PoE PD Controller

Download LT4275BHDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

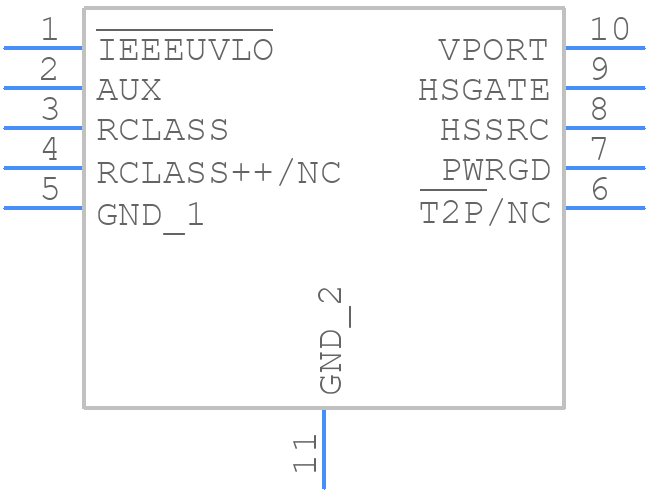

Symbol
LT4275BHDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4275BHDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT3485EDD-3#PBxxF
click to zoom
3D Models
LT4275BHDD#PBF - Analog Devices - 3D model - Small Outline No-lead - LT3485EDD-3#PBxxF
click to zoom

LT4275BHDD#PBF Details

  • Manufacturer Part Number:

    LT4275BHDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30
