LT4363CMS-2#TRPBF - Analog Devices

Description: n Withstands Surges Over 100V with VCC Clamp n Wide Operating Voltage Range: 4V to 80V n Adjustable Output Clamp Voltage n Fast Overcurrent Limit: Less Than 5µs n Reverse Input Protection to –60V 12-Pin MSOP

Download LT4363CMS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

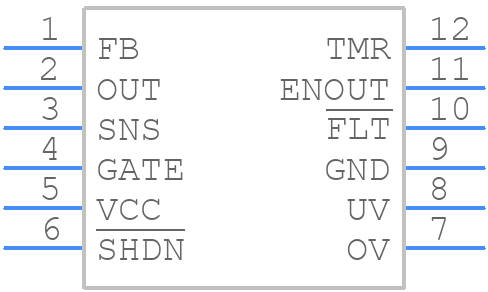

Symbol
LT4363CMS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363CMS-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom
3D Models
LT4363CMS-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom

LT4363CMS-2#TRPBF Details

  • Manufacturer Part Number:

    LT4363CMS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363CMS-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363CMS-2#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a Kelvin connection for the sense pins to reduce noise and improve accuracy.
  • To ensure the LT4363CMS-2#TRPBF is operating within its SOA, you should monitor the device's junction temperature, input voltage, and output current. The device's thermal resistance, package type, and PCB layout also affect its SOA. Consult the datasheet and application notes for more information on how to calculate the SOA for your specific application.
  • The recommended input capacitor type for the LT4363CMS-2#TRPBF is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
  • To troubleshoot overvoltage faults on the LT4363CMS-2#TRPBF, check the input voltage, output voltage, and sense pins for any signs of overvoltage. Verify that the input voltage is within the recommended range and that the sense pins are properly connected. Also, check for any signs of component failure, such as a shorted or open input capacitor, and ensure that the device is properly cooled.
  • The LT4363CMS-2#TRPBF can withstand surge currents up to 100A for a duration of 1ms. However, the device's surge current rating may be affected by the PCB layout, input capacitor value, and other application-specific factors. Consult the datasheet and application notes for more information on how to ensure the device can withstand surge currents in your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4363CMS-2#TRPBF Overview

Use the download button to access the LT4363CMS-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
