LT4363CS-2#PBF - Analog Devices

Description: n Withstands Surges Over 100V with VCC Clamp n Wide Operating Voltage Range: 4V to 80V n Adjustable Output Clamp Voltage n Fast Overcurrent Limit: Less Than 5µs n Reverse Input Protection to –60V d 16-Pin SO Package

Download LT4363CS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

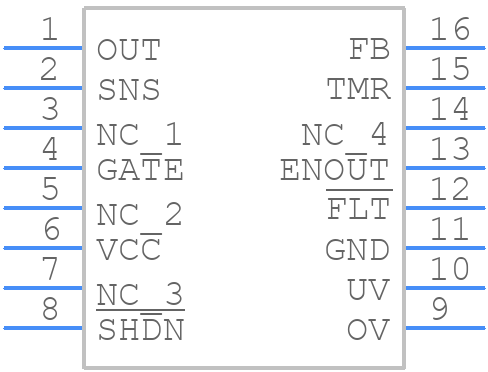

LT4363CS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363CS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT4363CS-2#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT4363CS-2#PBF Details

  • Manufacturer Part Number:

    LT4363CS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT4363CS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363CS-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane is recommended. Refer to the LT4363 demo board layout for a reference design.
  • Choose input capacitors with low ESR and high ripple current rating. X5R or X7R ceramic capacitors are recommended. For output capacitors, select ones with low ESR and high capacitance. A minimum of 10uF output capacitance is recommended. Refer to the datasheet for specific capacitor selection guidelines.
  • The LT4363CS-2#PBF can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V for optimal reliability and performance.
  • The LT4363CS-2#PBF has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. Refer to the datasheet for a detailed OVP implementation example.
  • The LT4363CS-2#PBF can deliver up to 5A of output current, but the actual output current capability depends on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for a detailed output current vs. input voltage graph.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4363CS-2#PBF Overview

Use the download button to access the LT4363CS-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436, or try a keyword search, such as Power Management Circuits
