LT4363HMS-2#TRPBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit IC SURGE STOPPER HV 12-MSOP

Download LT4363HMS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

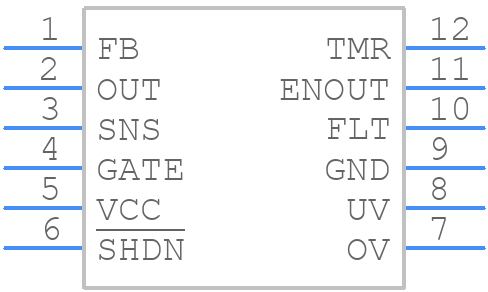

Symbol
LT4363HMS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363HMS-2#TRPBF - Analog Devices PCB footprint - Other - Other - MS Package 12-Lead Plastic MSOP (Reference LTC DWG # 05-08-1668 Rev A)
click to zoom
3D Models
LT4363HMS-2#TRPBF - Analog Devices - 3D model - Other - MS Package 12-Lead Plastic MSOP (Reference LTC DWG # 05-08-1668 Rev A)
click to zoom

LT4363HMS-2#TRPBF Details

  • Manufacturer Part Number:

    LT4363HMS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363HMS-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363HMS-2#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the EN pin to a 1.2V to 5.5V voltage source, and the VIN pin to a voltage source within the recommended operating range. Also, ensure the input and output capacitors are properly sized and placed close to the device.
  • The maximum input voltage that the LT4363HMS-2#TRPBF can handle is 80V. Exceeding this voltage may damage the device.
  • The LT4363HMS-2#TRPBF has a built-in overcurrent protection feature that limits the output current to 2.5A. However, it's recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to protect the device and the system from excessive current.
  • The thermal derating curve for the LT4363HMS-2#TRPBF can be found in the datasheet. In general, the device's power dissipation capability decreases as the ambient temperature increases. It's essential to ensure proper thermal management to prevent overheating.
