LT4363IDE-2#TRPBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363IDE-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

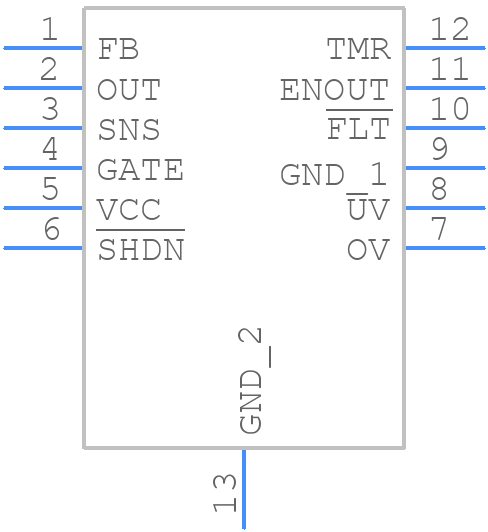

LT4363IDE-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363IDE-2#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT4363IDE-2#TRPBF
click to zoom
3D Models
LT4363IDE-2#TRPBF - Analog Devices - 3D model - Small Outline No-lead - LT4363IDE-2#TRPBF
click to zoom

LT4363IDE-2#TRPBF Details

  • Manufacturer Part Number:

    LT4363IDE-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363IDE-2#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT4363IDE-2#TRPBF can handle is 80V, but it's recommended to operate it within the specified input voltage range of 4.5V to 80V for optimal performance and reliability.
  • To ensure the LT4363IDE-2#TRPBF is properly biased, make sure to connect the EN pin to a voltage source between 1.2V and 5.5V, and the VIN pin to a voltage source within the specified input voltage range. Also, ensure that the input capacitor is properly sized and placed close to the VIN pin.
  • The FAULT pin is an open-drain output that indicates when the LT4363IDE-2#TRPBF detects an overvoltage or undervoltage condition. You can use this pin to trigger an interrupt or alarm in your system, or to shut down the system to prevent damage. Connect a pull-up resistor to a voltage source, and use the FAULT pin as an input to your microcontroller or other logic circuit.
  • Choose an input capacitor with a voltage rating that exceeds the maximum input voltage, and a capacitance value that meets the recommended minimum capacitance value specified in the datasheet. Also, consider the capacitor's ESR (Equivalent Series Resistance) and ensure it's within the recommended range to minimize voltage ripple and ensure stable operation.
  • The LT4363IDE-2#TRPBF is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that your system design takes into account the device's thermal characteristics and provides adequate heat sinking and cooling to maintain a safe operating temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4363IDE-2#TRPBF Overview

Use the download button to access the LT4363IDE-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436, or try a keyword search, such as Power Management Circuits
