LT4363IMS-2#PBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363IMS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

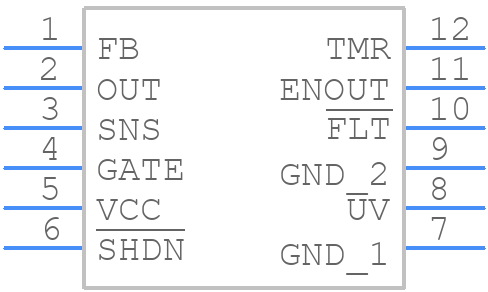

LT4363IMS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363IMS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom
3D Models
LT4363IMS-2#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom

LT4363IMS-2#PBF Details

  • Manufacturer Part Number:

    LT4363IMS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363IMS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. Ensure the capacitors are placed close to the IC and have a low ESR.
  • The LT4363 is rated for operation from -40°C to 125°C. However, the device may not meet its specified performance over the full temperature range. Ensure proper thermal design and heat sinking to maintain a safe junction temperature.
  • Yes, the LT4363 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured in a facility certified to IATF 16949.
  • Check the PCB layout, ensure proper decoupling, and verify that the input and output capacitors meet the recommended specifications. Also, check for any voltage drops or noise on the input and output lines. Consult the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4363IMS-2#PBF Overview

Use the download button to access the LT4363IMS-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436, or try a keyword search, such as Power Management Circuits
