LT4363IS-1#PBF - Analog Devices

Description: n Withstands Surges Over 100V with VCC Clamp n Wide Operating Voltage Range: 4V to 80V n Adjustable Output Clamp Voltage n Fast Overcurrent Limit: Less Than 5µs n Reverse Input Protection to –60V 16-Pin SO Package

Download LT4363IS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

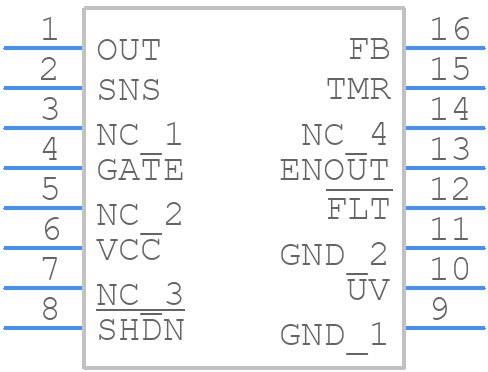

LT4363IS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363IS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SO
click to zoom
3D Models
LT4363IS-1#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic SO
click to zoom

LT4363IS-1#PBF Details

  • Manufacturer Part Number:

    LT4363IS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT4363IS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363IS-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a Kelvin connection for the sense pins to reduce noise and improve accuracy.
  • The selection of input and output capacitors for the LT4363IS-1#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 25V to 50V.
  • The maximum operating temperature range for the LT4363IS-1#PBF is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • To troubleshoot common issues with the LT4363IS-1#PBF, start by checking the input and output voltage levels, as well as the current drawn from the input. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the input and output waveforms and look for any signs of oscillation or instability. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the LT4363IS-1#PBF is designed to meet the requirements of high-reliability and safety-critical applications. It has a number of built-in safety features, such as overvoltage and undervoltage protection, overcurrent protection, and thermal shutdown. However, it's essential to follow proper design and testing procedures to ensure that the device meets the specific requirements of the application. Consult the datasheet and application notes for more information on using the LT4363IS-1#PBF in high-reliability or safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4363IS-1#PBF Overview

Use the download button to access the LT4363IS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
