- Stock & Prices $ Price & Stock for LT4363IS-2#PBF
- Part Number LT4363IS-2#PBF
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16-Lead Plastic SO
- Released Date Mar 14, 2022
- Last Modified Date Aug 27, 2024 6:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
LT4363IS-2#PBF Details
-
Manufacturer Part Number:
LT4363IS-2#PBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
05-08-1610 (S16)
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LT4363IS-2#PBF Frequently Asked Questions (FAQs)
-
The maximum input voltage that the LT4363IS-2#PBF can handle is 80V, but it's recommended to operate it within the specified input voltage range of 4.5V to 80V for optimal performance and reliability.
-
To ensure the LT4363IS-2#PBF is properly biased, make sure to connect the EN pin to a voltage source between 1.2V and 5.5V, and the VIN pin to a voltage source within the specified input voltage range. Also, ensure that the input capacitor is properly sized and placed close to the VIN pin.
-
The FAULT pin is an open-drain output that indicates when the LT4363IS-2#PBF detects an overvoltage or undervoltage condition. You can use this pin to trigger an interrupt or reset in your system, or to turn off the power supply in case of a fault condition.
-
Choose an input capacitor with a voltage rating that exceeds the maximum input voltage, and a capacitance value that meets the recommended minimum capacitance value specified in the datasheet. Also, consider the capacitor's ESR, temperature rating, and physical size when making your selection.
-
The LT4363IS-2#PBF is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that your system design takes into account the device's thermal characteristics and provides adequate heat sinking and cooling.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LT4363IS-2#PBF Overview

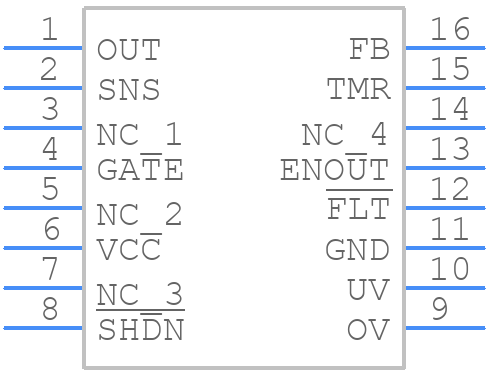

Use the download button to access the LT4363IS-2#PBF schematic symbol, PCB footprint, and 3D model.
