LT4363MPMS-2#PBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363MPMS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

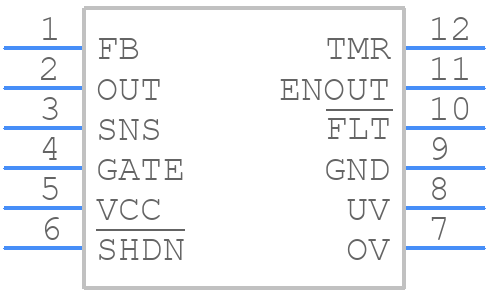

Symbol
LT4363MPMS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363MPMS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP*
click to zoom
3D Models
LT4363MPMS-2#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP*
click to zoom

LT4363MPMS-2#PBF Details

  • Manufacturer Part Number:

    LT4363MPMS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363MPMS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363MPMS-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the input and output capacitors are of high quality and meet the recommended specifications. Also, ensure the PCB layout is well-designed, and the device is properly decoupled. Additionally, follow the recommended compensation network values and layout guidelines.
  • The maximum ambient temperature range for the LT4363MPMS-2#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • Yes, the LT4363MPMS-2#PBF is suitable for high-reliability and aerospace applications. It is manufactured and tested to meet the requirements of these industries, and Analog Devices provides additional documentation and support for these applications.
  • To troubleshoot issues with the LT4363MPMS-2#PBF, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4363MPMS-2#PBF Overview

Use the download button to access the LT4363MPMS-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
