LT4363MPMS-2#TRPBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363MPMS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

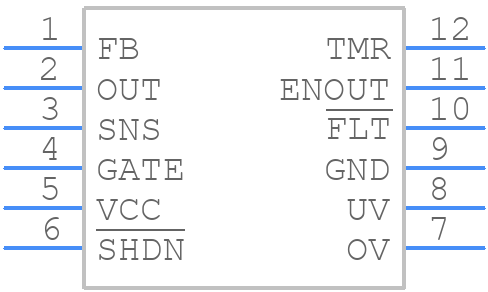

LT4363MPMS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363MPMS-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT4363MPMS-2#TRPBF
click to zoom
3D Models
LT4363MPMS-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - LT4363MPMS-2#TRPBF
click to zoom

LT4363MPMS-2#TRPBF Details

  • Manufacturer Part Number:

    LT4363MPMS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363MPMS-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363MPMS-2#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a Kelvin connection for the sense pins to reduce noise and improve accuracy.
  • The selection of input and output capacitors for the LT4363MPMS-2#TRPBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 25V to 50V.
  • The maximum operating temperature range for the LT4363MPMS-2#TRPBF is -40°C to 125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • To troubleshoot common issues with the LT4363MPMS-2#TRPBF, start by checking the input and output voltage levels, as well as the current drawn from the input source. Verify that the device is properly configured and that the sense pins are connected correctly. Check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support for assistance.
  • Yes, the LT4363MPMS-2#TRPBF is designed to meet the requirements of high-reliability and safety-critical applications. The device is built with high-quality materials and undergoes rigorous testing and qualification procedures to ensure its reliability and performance. However, it's essential to follow proper design and manufacturing practices, as well as to conduct thorough testing and validation, to ensure the device meets the specific requirements of the application.
