LT4363MPS-1#PBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363MPS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

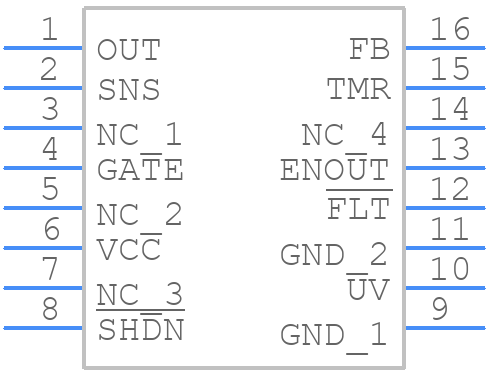

Symbol
LT4363MPS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363MPS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT4363MPS-1#PBF
click to zoom
3D Models
LT4363MPS-1#PBF - Analog Devices - 3D model - Small Outline Packages - LT4363MPS-1#PBF
click to zoom

LT4363MPS-1#PBF Details

  • Manufacturer Part Number:

    LT4363MPS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT4363MPS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363MPS-1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane is recommended. Refer to the LT4363 demo board layout for a reference design.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. Output capacitors should have low ESR, high capacitance, and be able to handle the output current. X5R or X7R ceramic capacitors are recommended. Refer to the datasheet for specific capacitor selection guidelines.
  • The LT4363MPS-1 has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The LT4363MPS-1 has an absolute maximum rating of 80V on the input pins. Exceeding this voltage can damage the device. If you need to operate at higher voltages, consider using a voltage divider or a different device.
  • Check the PCB layout, input and output capacitor selection, and the input voltage range. Ensure that the device is properly bypassed and decoupled. Use an oscilloscope to measure the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines.
