LT6654BXMS8-2.5#PBF - Analog Devices

Description: 175°C, Wide Supply 2.5V Precision Voltage Reference, MSOP-8

Download LT6654BXMS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

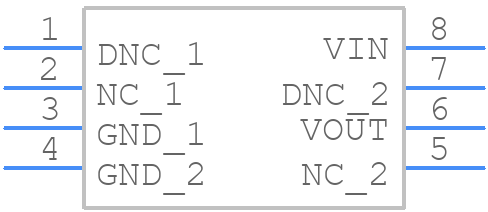

Symbol
LT6654BXMS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6654BXMS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LT6654BXMS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LT6654BXMS8-2.5#PBF Details

  • Manufacturer Part Number:

    LT6654BXMS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    SPECIFIED JUNCTION TEMP IS GIVEN FROM -40DEG CEL TO 175DEG CEL

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    2.5025 V

  • Output Voltage-Min:

    2.4975 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

LT6654BXMS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6654BXMS8-2.5#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate voltage regulation, it's essential to follow the recommended layout and component selection guidelines, including using low-ESR capacitors, minimizing noise and ripple, and ensuring proper thermal management. Additionally, the device's output voltage can be adjusted using the VSET pin, and the output voltage accuracy can be improved by using an external precision voltage reference.
  • The LT6654BXMS8-2.5#PBF has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications. However, the device's performance and accuracy may degrade at extreme temperatures, so it's essential to ensure proper thermal management and consider the device's thermal characteristics during design.
  • The LT6654BXMS8-2.5#PBF is a commercial-grade device, but Analog Devices Inc offers a range of high-reliability and aerospace-grade versions of the device, such as the LT6654HMS8-2.5#PBF, which is designed for high-reliability applications. These devices undergo additional screening and testing to ensure their performance and reliability in demanding environments.
  • To troubleshoot common issues with the LT6654BXMS8-2.5#PBF, start by verifying the device's input voltage, output voltage, and load current. Check for proper component selection, PCB layout, and thermal management. Use oscilloscopes and other diagnostic tools to identify noise, ripple, or oscillations that may be affecting the device's performance. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
