LT6658AHDE-1.2#PBF - Analog Devices

Description: n Dual Output Tracking Reference n Each Output Configurable to 6V n Output 1: 150mA Source/20mA Sink n Output 2: 50mA Source/20mA Sink n Low Drift: n A-Grade: 10ppm/°C Max n B-Grade: 20ppm/°C Max n High Accuracy: n A-Grade: ±0.05% Max n B-Grade: ±0.1% Max n Low Noise: 1.5ppmP-P (0.1Hz to 10Hz)

Download LT6658AHDE-1.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

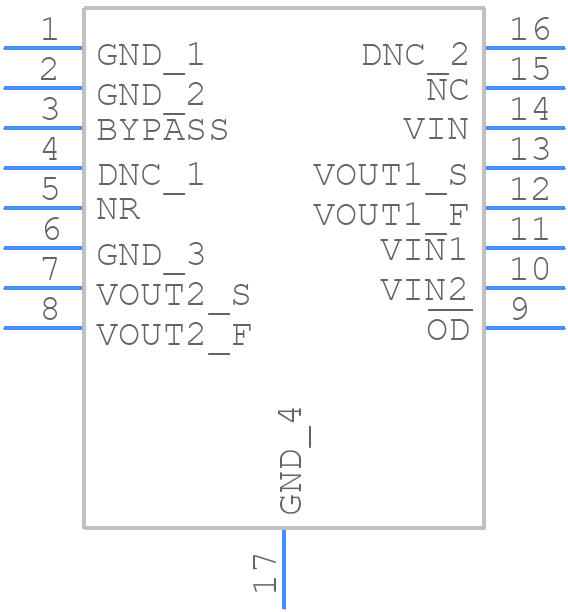

LT6658AHDE-1.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6658AHDE-1.2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LT6658AHDE-1.2#PBF - Analog Devices - 3D model - Small Outline No-lead - 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LT6658AHDE-1.2#PBF Details

  • Manufacturer Part Number:

    LT6658AHDE-1.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.2006 V

  • Output Voltage-Min:

    1.1994 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.2 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3 mm

LT6658AHDE-1.2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6658AHDE-1.2 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor ESR within the recommended range. Also, avoid using capacitors with high ESL or ESR, and keep the feedback loop impedance low. Additionally, a small series resistor (e.g., 1-10 ohms) can be added to the output to improve stability.
  • The maximum output current capability of the LT6658AHDE-1.2 is 20mA, but this can be limited by the thermal performance of the device and the PCB. It's recommended to derate the output current based on the ambient temperature and the device's thermal resistance.
  • Yes, the LT6658AHDE-1.2 can be used as a voltage reference for an ADC or DAC, but it's essential to consider the noise and drift specifications of the device. The LT6658AHDE-1.2 has a low noise output (typically 10uVrms) and a low drift (typically 10ppm/C), making it suitable for many precision applications.
  • The power dissipation of the LT6658AHDE-1.2 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the thermal resistance of the device and the PCB when calculating the power dissipation.
