LT8672EDDB#TRMPBF - Analog Devices

Description: Gate Driver IC Non-Inverting 10-DFN (3x2) ,3V ~ 42V,-40°C ~ 125°C (TJ)

Download LT8672EDDB#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

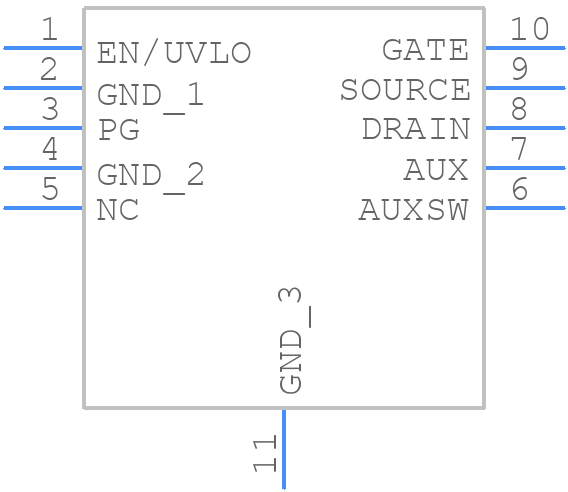

LT8672EDDB#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8672EDDB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 10-Lead Plastic DFN (3mm × 2mm) COL_2025-1
click to zoom
3D Models
LT8672EDDB#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 10-Lead Plastic DFN (3mm × 2mm) COL_2025-1
click to zoom

LT8672EDDB#TRMPBF Details

  • Manufacturer Part Number:

    LT8672EDDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1531

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.21V

  • Width:

    2 mm

LT8672EDDB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8672EDDB#TRMPBF involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output resistors within the recommended range. Also, avoid using long input traces and ensure that the device is properly decoupled.
  • The LT8672EDDB#TRMPBF is rated for operation up to 125°C ambient temperature, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
  • Yes, the LT8672EDDB#TRMPBF is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of your application.
  • To troubleshoot oscillation or instability, check the PCB layout, decoupling, and compensation network. Ensure that the input and output resistors are within the recommended range, and that the device is properly decoupled. Also, check for noise sources and ensure that the device is not overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8672EDDB#TRMPBF Overview

Use the download button to access the LT8672EDDB#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT867, or try a keyword search, such as Power Management Circuits
