LT8672JDDBM#WTRPBF - Analog Devices

Description: Controller 3V to 42V Automotive 10-Pin DFN EP T/R

Download LT8672JDDBM#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

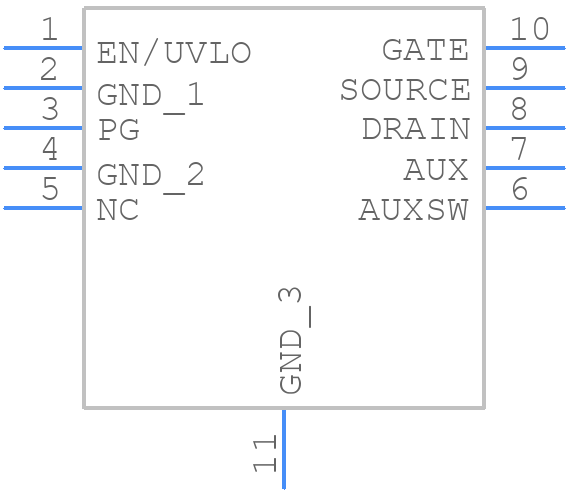

Symbol
LT8672JDDBM#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8672JDDBM#WTRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDBM Package 10-Lead Plastic SIDE WETTABLE DFN (3mm × 2mm)
click to zoom
3D Models
LT8672JDDBM#WTRPBF - Analog Devices - 3D model - Small Outline No-lead - DDBM Package 10-Lead Plastic SIDE WETTABLE DFN (3mm × 2mm)
click to zoom

LT8672JDDBM#WTRPBF Details

  • Manufacturer Part Number:

    LT8672JDDBM#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1655

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.21V

  • Width:

    2 mm

LT8672JDDBM#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8672 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output resistors within the recommended range. Additionally, avoid using long input traces and ensure that the device is properly decoupled.
  • The maximum ambient temperature range for the LT8672 is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
  • Yes, the LT8672 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is available in a variety of grades, including the 'H' grade for high-reliability applications.
  • The power dissipation of the LT8672 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
