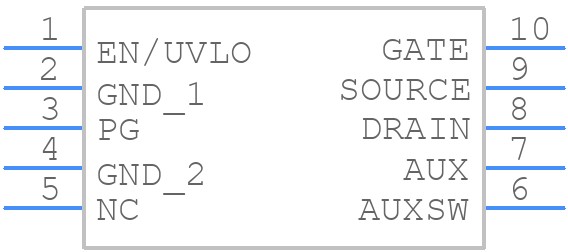

LT8672JMS#PBF - Analog Devices

LT8672JMS#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LT8672?
  A good PCB layout for the LT8672 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
• How do I ensure stability of the LT8672 in my design?
  To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. Additionally, a feedforward capacitor can be added to improve stability.
• What is the maximum input voltage that the LT8672 can handle?
  The maximum input voltage that the LT8672 can handle is 80V, but it's recommended to keep the input voltage below 60V to ensure reliable operation and to prevent damage to the device.
• Can I use the LT8672 in a high-temperature environment?
  The LT8672 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
• How do I troubleshoot issues with the LT8672 in my design?
  To troubleshoot issues with the LT8672, start by checking the input and output voltages, and the output current. Verify that the device is properly powered and that the input and output capacitors are properly sized and connected. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides and tips.
