LTC-5336P - Lite-On

Description: LED Displays & Accessories 3 Digit, Red

Download LTC-5336P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

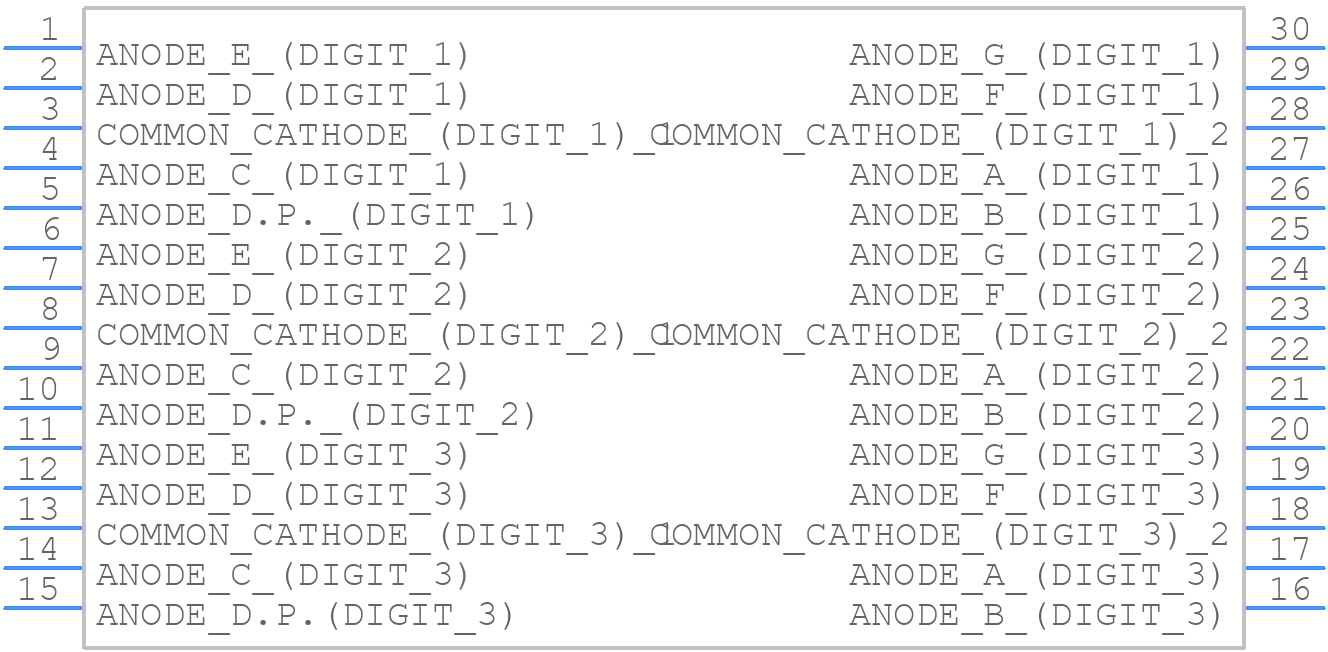

LTC-5336P - Lite-On - PCB symbol
click to zoom
PCB Footprints

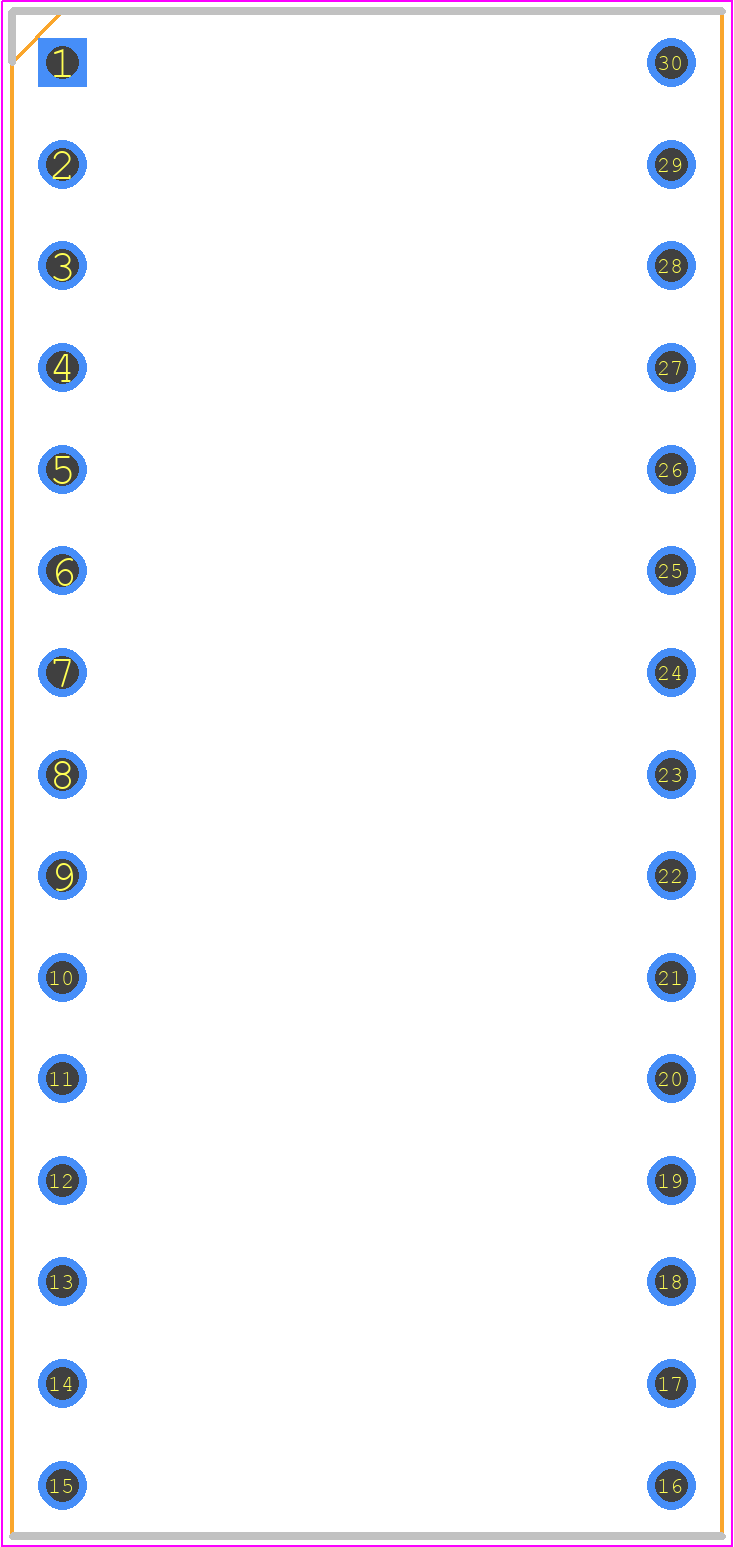

LTC-5336P - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTC-5336P
click to zoom

LTC-5336P Details

  • Manufacturer Part Number:

    LTC-5336P

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-30

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    5

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    13.2 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    697 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

LTC-5336P Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise and EMI. Additionally, it is recommended to place the input and output capacitors close to the IC and to use a low-ESR capacitor for the output filter.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of less than 1 ohm. Additionally, the output voltage should be decoupled with a 10nF ceramic capacitor to reduce noise and oscillation.
  • The maximum input voltage that can be applied to the IC is 18V, but it is recommended to operate the IC within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout x Rout) / (f x Cout), where Iout is the output current, Rout is the output resistance, f is the switching frequency, and Cout is the output capacitance.
  • The thermal derating of the IC is 1.5°C/W, which means that the maximum power dissipation of the IC decreases by 1.5°C for every 1W increase in ambient temperature above 25°C.
