Part Image

LTC1197CMS8#PBF - Analog Devices

Description: Single Channel Single ADC SAR 500ksps 10-bit Serial 8-Pin MSOP Tube

Download LTC1197CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

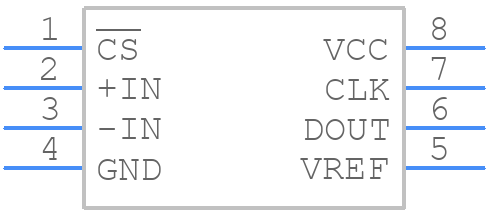

Symbol
LTC1197CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1197CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660)-ren1
click to zoom
3D Models
LTC1197CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660)-ren1
click to zoom

LTC1197CMS8#PBF Details

  • Manufacturer Part Number:

    LTC1197CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    1.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    8.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1197CMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1197 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the input capacitors close to the IC and use a low-ESR capacitor for the VCC bypass.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the input and output capacitors are of high quality and meet the recommended specifications. Additionally, avoid using long input traces and keep the feedback resistors close to the IC.
  • The maximum input voltage that the LTC1197 can handle is 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and to prevent damage to the IC.
  • The LTC1197 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, make sure to follow the recommended thermal management guidelines to prevent overheating.
  • To troubleshoot issues with the LTC1197, start by checking the PCB layout and ensuring that it meets the recommended guidelines. Next, verify that the input and output capacitors meet the recommended specifications. Use an oscilloscope to check for oscillations or instability, and try to isolate the problem to a specific component or section of the circuit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1197CMS8#PBF Overview

Use the download button to access the LTC1197CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC11, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
