LTC1296DCN#PBF - Analog Devices

Description: Single Chip 12-Bit Data Acquisition System

Download LTC1296DCN#PBF Model

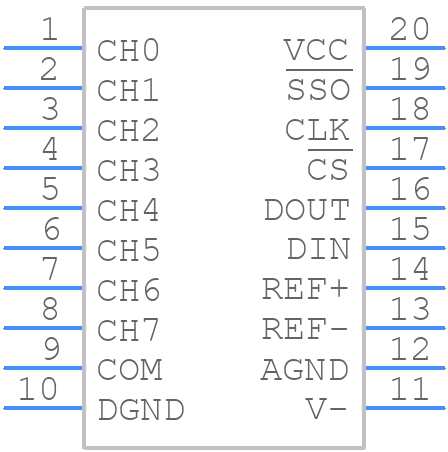

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

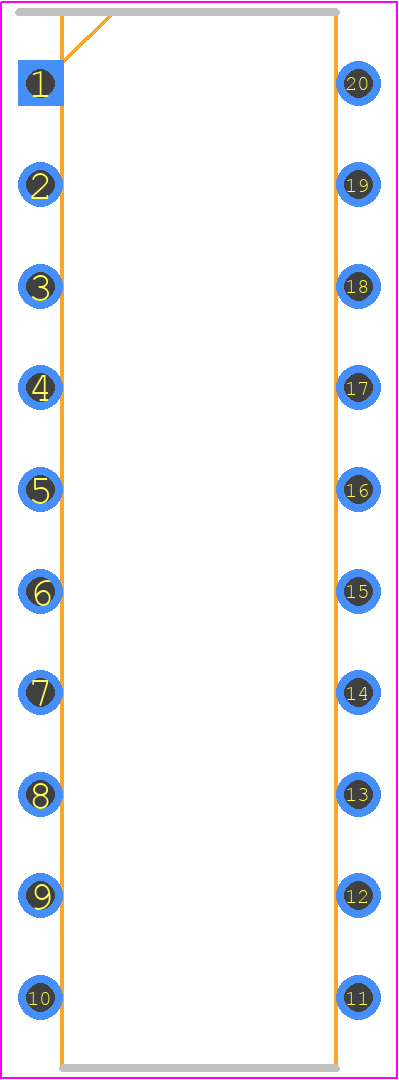

LTC1296DCN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch) (Reference LTC DWG # 05-08-1510)
click to zoom
3D Models
LTC1296DCN#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch) (Reference LTC DWG # 05-08-1510)
click to zoom

LTC1296DCN#PBF Details

  • Manufacturer Part Number:

    LTC1296DCN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1510 (N20)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -5.05 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.924 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0465 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    4.2 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1296DCN#PBF Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the LTC1296 is 1.5MHz. However, it's recommended to use a clock frequency between 100kHz to 500kHz for optimal performance.
  • To ensure accurate conversions with the LTC1296, make sure to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling to the analog inputs. Additionally, use the recommended capacitor values for the internal oscillator and reference voltage.
  • Yes, the LTC1296 can be used with a single-ended analog input. However, the input signal should be referenced to the analog ground (AGND) pin, and the analog input range should be limited to 0V to VREF (2.5V or 5V) to avoid saturation.
  • The LTC1296 can be interfaced with a microcontroller using a 3-wire serial interface (SCK, SDI, and SDO). The microcontroller should provide a clock signal to the SCK pin, and data can be transferred using the SDI and SDO pins. Make sure to follow the timing diagrams and protocol specified in the datasheet.
  • The LTC1296 has a power-on reset (POR) circuit that resets the device to a known state when the power supply voltage (VCC) rises above 1.5V. The POR circuit ensures that the device starts up in a consistent state, and all registers are reset to their default values.
