LTC1383CS#PBF - Analog Devices

Description: Linear Technology LTC1383CS#PBF, Line Transceiver, RS-232 2-TX 2-RX, 5 V, 16-Pin SOIC

Download LTC1383CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

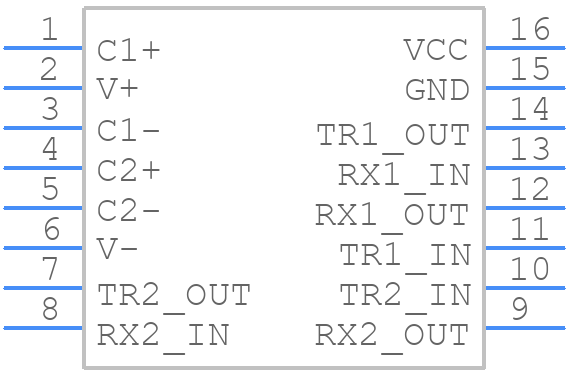

LTC1383CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1383CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1383CS#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1383CS#PBF Details

  • Manufacturer Part Number:

    LTC1383CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    800 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    3500 ns

  • Width:

    3.899 mm

LTC1383CS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1383CS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • The LTC1383CS#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The LTC1383CS#PBF can achieve data transfer rates of up to 100 kbps, but the actual data rate depends on the specific application and the quality of the transmission line.
  • To troubleshoot issues with the LTC1383CS#PBF, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the device is properly configured and that the transmission line is properly terminated. Use an oscilloscope to check the signal quality and look for signs of noise or distortion.
  • Yes, the LTC1383CS#PBF is a high-frequency device and can be susceptible to electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep the device away from other high-frequency sources, and use a common-mode choke or ferrite bead on the transmission line.
