LTC1415IG - Analog Devices

Description: 1-Channel Single ADC SAR 1.25Msps 12-bit Parallel 28-Pin SSOP

Download LTC1415IG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

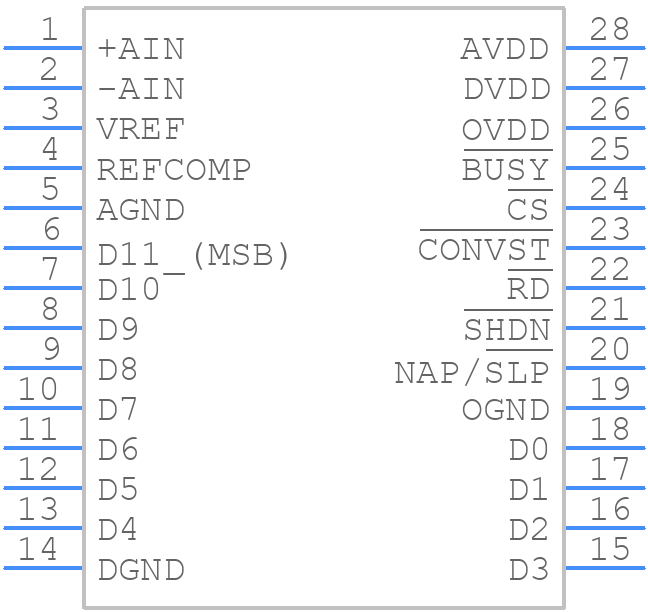

Symbol
LTC1415IG - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1415IG - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic SSOP (5.3mm)_
click to zoom
3D Models
LTC1415IG - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic SSOP (5.3mm)_
click to zoom

LTC1415IG Details

  • Manufacturer Part Number:

    LTC1415IG

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.209 INCH, PLASTIC, SSOP-28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    4.096 V

  • Analog Input Voltage-Min:

    -4.096 V

  • Conversion Time-Max:

    0.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

LTC1415IG Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the LTC1415IG is 105 MHz. However, it's recommended to use a clock frequency of 80 MHz or less to ensure reliable operation.
  • To optimize the layout of the LTC1415IG, it's recommended to follow a star-ground configuration, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital traces, and use shielding or guard rings to minimize noise.
  • The recommended power-up sequence for the LTC1415IG is to power up the analog supply (VCC) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures reliable operation.
  • The LTC1415IG has internal overvoltage protection on the analog input pins, but it's still recommended to use external protection devices such as TVS diodes or clamp circuits to handle overvoltage conditions. This helps to prevent damage to the device and ensure reliable operation.
  • The recommended termination scheme for the digital output pins of the LTC1415IG is to use a series resistor and capacitor (RC) termination network. This helps to reduce ringing and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1415IG Overview

Use the download button to access the LTC1415IG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
