A good PCB layout for the LTC1605AIG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
The LTC1605AIG#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the VCC pin before the VIN pin, and to ensure that the VCC pin is stable before applying an input signal.
The maximum data rate of the LTC1605AIG#PBF is 100 kbps. The limitation is due to the internal clock frequency and the settling time of the analog-to-digital converter. To achieve the maximum data rate, it's recommended to use a high-speed clock source and to optimize the PCB layout for minimal noise and signal integrity.
The LTC1605AIG#PBF requires a one-time calibration process to ensure accurate conversions. The calibration process involves applying a known input voltage and adjusting the internal offset and gain registers. The calibration requirements include a stable input voltage, a low-noise environment, and a precise clock source.
The LTC1605AIG#PBF has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid operating the device near its maximum power dissipation rating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC1605AIG#PBF Overview

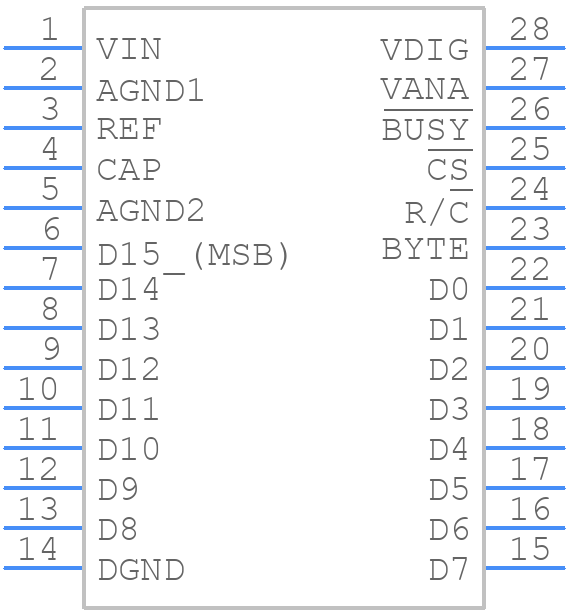

Use the download button to access the LTC1605AIG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC16,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
