LTC1605IG#PBF - Analog Devices

Description: 16-Bit, 100ksps, Sampling ADC

Download LTC1605IG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

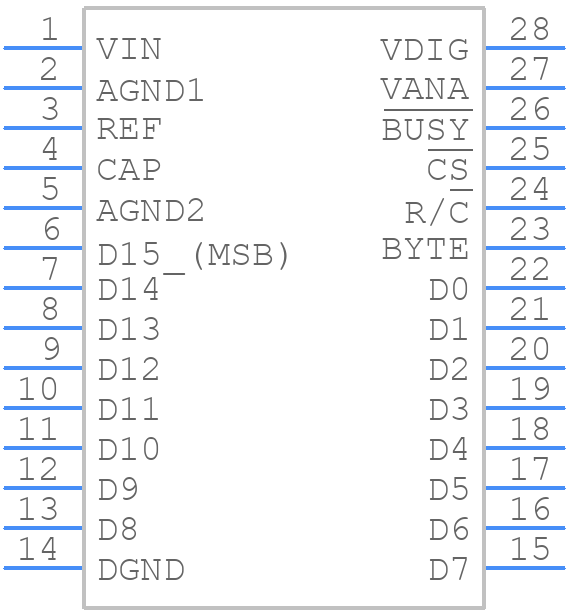

Symbol
LTC1605IG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1605IG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC1605IG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom

LTC1605IG#PBF Details

  • Manufacturer Part Number:

    LTC1605IG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1605IG#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC1605IG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • The LTC1605IG#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirement is to power up the VCC pin before the CLKIN pin, and to ensure that the VCC pin is stable before applying a clock signal.
  • The LTC1605IG#PBF can handle clock frequencies up to 80MHz, but it's recommended to use a clock frequency between 10MHz to 40MHz for optimal performance. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%.
  • To optimize the performance of the LTC1605IG#PBF, it's recommended to use a low-noise power supply, to minimize the analog signal trace lengths, and to use a high-quality clock source. Additionally, the device should be operated within its recommended operating conditions, and the analog input signals should be properly filtered and buffered.
  • The LTC1605IG#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. A thermal pad or a heat sink can be used to dissipate heat, and the device should be operated within its recommended operating conditions to minimize thermal stress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1605IG#PBF Overview

Use the download button to access the LTC1605IG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC16, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
